High-speed operational amplifier featuring a 3GHz gain bandwidth product and 510MHz -3dB bandwidth. This single-channel, single-amplifier IC offers a 715V/µs slew rate and 18ns settling time. It operates with dual supply voltages from 2.5V to 6V, or a single supply from 5V to 12V. The SOIC-8 package houses an amplifier with 100µV input offset voltage and 3µA input bias current, providing 88dB CMRR and 80dB PSRR.
PackageSOIC
Current16mA
Quick Jump:
Technical Specifications
Analog Devices AD8099ARD technical specifications.
General
-3db Bandwidth
510MHz
Bandwidth
500MHz
Package/Case
SOIC
Common Mode Rejection Ratio
88dB
Contact Plating
Tin, Lead
Dual Supply Voltage
5V
Gain Bandwidth Product
3GHz
Input Bias Current
3uA
Input Capacitance
1.8pF
Input Offset Voltage (Vos)
100uV
Lead Free
Contains Lead
Max Dual Supply Voltage
6V
Min Dual Supply Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
12V
Min Supply Voltage
5V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
15mA
Operating Supply Voltage
10V
Output Current
35mA
Output Current per Channel
178mA
Package Quantity
98
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
80dB
Quiescent Current
16mA
RoHS Compliant
No
Settling Time
18ns
Slew Rate
715V/µs
Supply Current
16mA
Voltage Gain
81dB
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD8099ARD Datasheet
Download the complete datasheet for Analog Devices AD8099ARD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

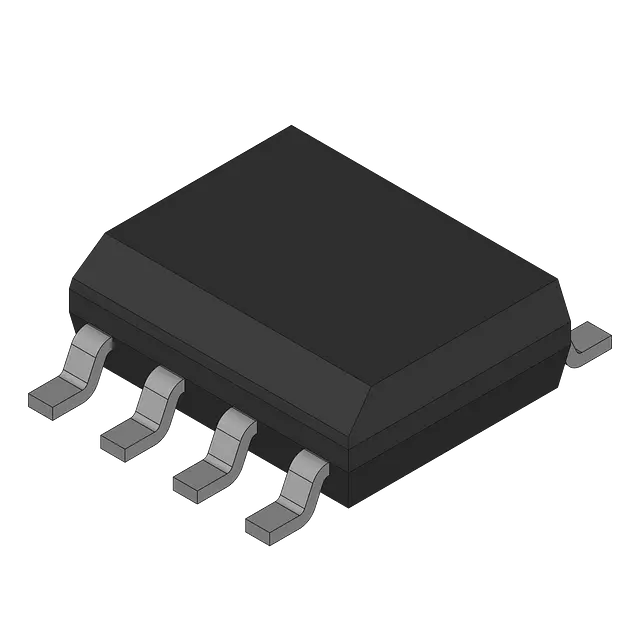

Product Images
