Differential receiver amplifier with a 270MHz bandwidth and 290MHz gain bandwidth product. Features a 1090V/µs slew rate and 20ns settling time, suitable for surface mount applications in a SOIC package. Operates with dual supply voltages from 2.25V to 12.6V, offering 86dB common mode rejection ratio and 71dB voltage gain. This single-channel amplifier has a low input bias current of 2µA and input resistance of 6MΩ, with an operating supply current of 10.8mA.
PackageSOIC
Voltage5V
Current13mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD8130ARZ technical specifications.
General
-3db Bandwidth
270MHz
Amplifier Type
DIFFERENTIAL
Bandwidth
270MHz
Package/Case
SOIC
Common Mode Rejection Ratio
86dB
Dual Supply Voltage
9V
Gain Bandwidth Product
290MHz
Height
1.5mm
Input Bias Current
2uA
Input Offset Voltage (Vos)
400uV
Input Resistance
6MR
Lead Free
Contains Lead
Length
5mm
Logic Function
Receiver
Max Dual Supply Voltage
12.6V
Min Dual Supply Voltage
2.25V
Max Input Voltage
12.6V
Min Input Voltage
2.25V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
25.2V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
10.8mA
Operating Supply Voltage
12.6V
Output Current
40mA
Output Current per Channel
40mA
Package Quantity
98
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
20ns
Slew Rate
1090V/µs
Supply Current
13mA
Unity Gain Bandwidth Product
110MHz
Voltage
5V
Voltage Gain
71dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8130ARZ Datasheet
Download the complete datasheet for Analog Devices AD8130ARZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

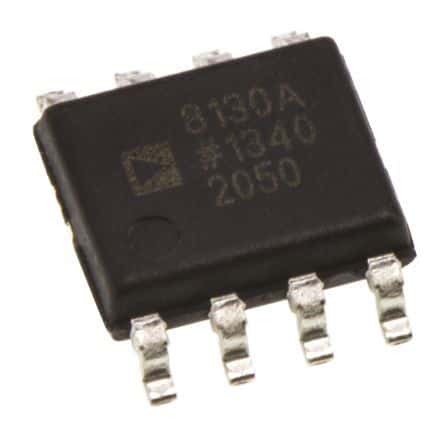

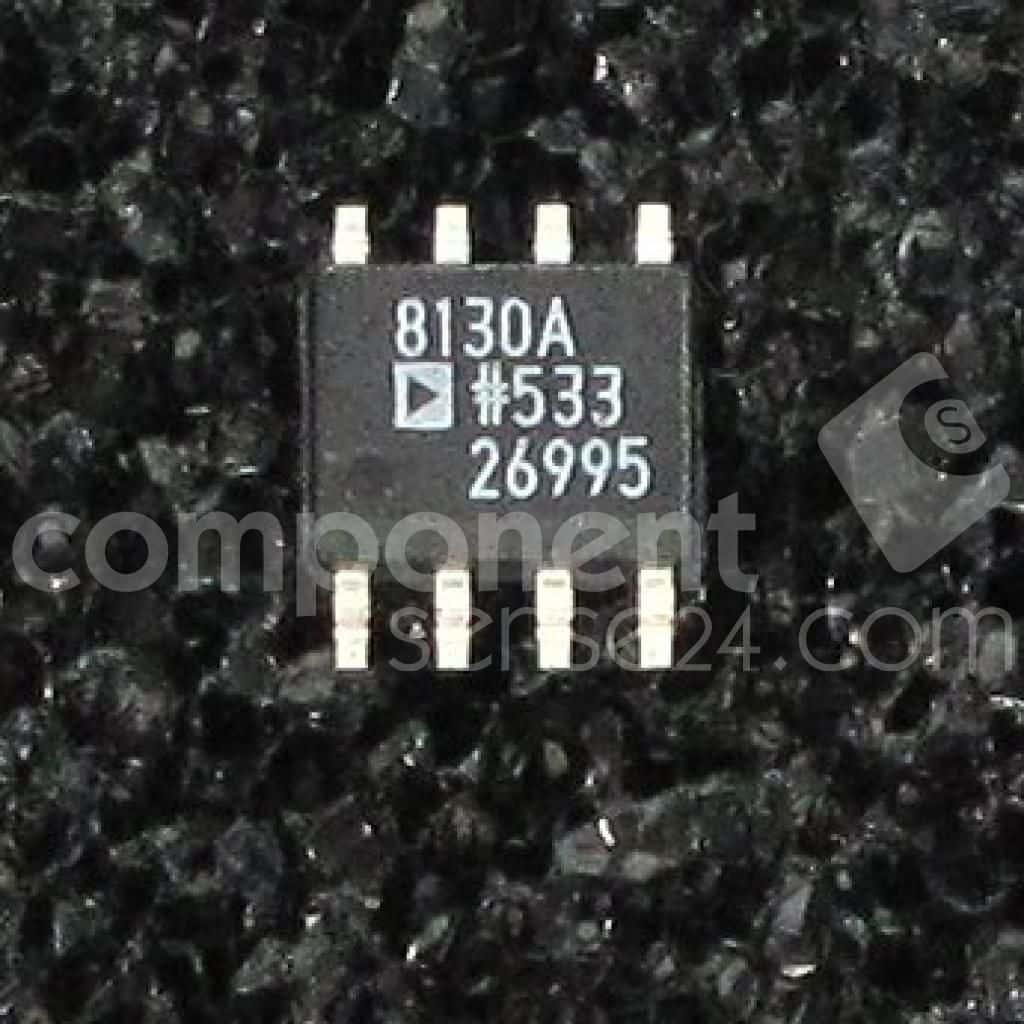

Product Images
