The AD8158ACPZ is a single-supply digital switch from Analog Devices, packaged in a 4-pin LFCSP EP. It operates within a temperature range of -40°C to 85°C and has a nominal supply current of 860mA. The device is RoHS compliant and has a power dissipation of 115mW. It is available in a tray packaging format.
PackageLFCSP EP
Power115mW
Quick Jump:
Technical Specifications
Analog Devices AD8158ACPZ technical specifications.
General
| Package/Case | LFCSP EP |
| Data Rate | 6.5Gbps |
| Height | 0.84mm |
| Independent Circuits | 1 |
| Lead Free | Contains Lead |
| Length | 12mm |
| Max Dual Supply Voltage | 3.6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Nominal Supply Current | 860mA |
| Number of Circuits | 4 |
| Operating Supply Current | 850mA |
| Package Quantity | 1 |
| Packaging | Tray |
| Power Dissipation | 115mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | XStream™ |
| Supply Type | Single |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices AD8158ACPZ Datasheet
Download the complete datasheet for Analog Devices AD8158ACPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

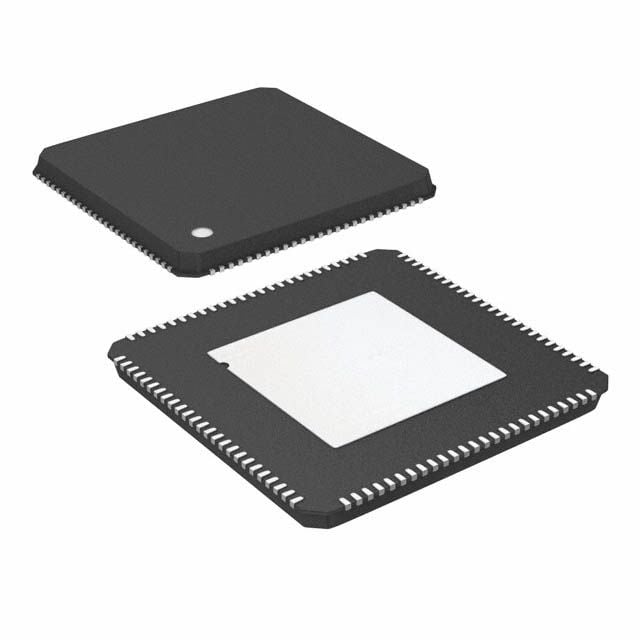

Product Images
