Single-supply, rail-to-rail FET-input operational amplifier featuring a 1.9MHz gain bandwidth product and 3V/µs slew rate. Offers 120dB voltage gain, 80dB CMRR, and 80dB PSRR. Operates from a 2.5V to 18V dual supply or 5V to 36V single supply, with a typical quiescent current of 900µA. Input bias current is 2pA, and input offset voltage is 1mV. Packaged in a 5mm x 4mm x 1.5mm R case with tin/lead contact plating.
PackageR
Power1W
Quick Jump:
Technical Specifications
Analog Devices AD820AR technical specifications.
General
-3db Bandwidth
1.9MHz
Package/Case
R
Common Mode Rejection Ratio
80dB
Contact Plating
Tin, Lead
Dual Supply Voltage
3V
Gain Bandwidth Product
1.9MHz
Height
1.5mm
Input Bias Current
2pA
Input Capacitance
2.8pF
Input Offset Voltage (Vos)
1mV
Input Voltage Noise Density
25nV/sqrt Hz
Lead Free
Contains Lead
Length
5mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
36V
Min Supply Voltage
5V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
900uA
Operating Supply Voltage
9V
Output Current per Channel
20mA
Package Quantity
98
Packaging
Rail/Tube
Power Dissipation
1W
Power Supply Rejection Ratio (PSRR)
80dB
Quiescent Current
900uA
Radiation Hardening
No
RoHS Compliant
No
Settling Time
4.5us
Slew Rate
3V/µs
Technology
BIFET
Unity Gain Bandwidth Product
1.9MHz
Voltage Gain
120dB
Width
4mm
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices AD820AR Datasheet
Download the complete datasheet for Analog Devices AD820AR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

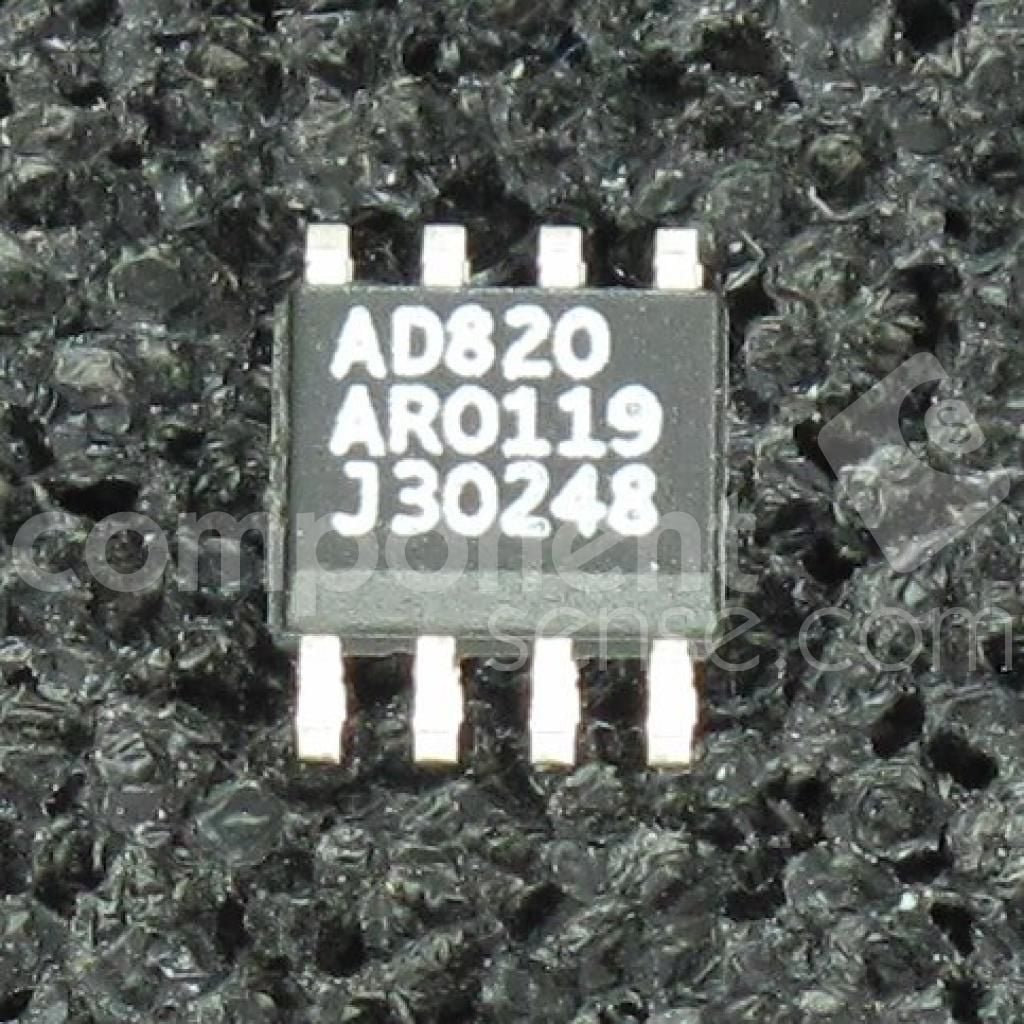

Product Images
