Dual operational amplifier featuring a 50MHz -3dB bandwidth and 350V/µs slew rate. This bipolar technology device offers a 50MHz gain bandwidth product and operates from ±2.5V to ±18V dual supply or 5V to 36V single supply. With a 100dB CMRR and 86dB PSRR, it provides 50mA output current per channel and a 70ns settling time. The amplifier exhibits 15nV/√Hz input voltage noise density and 3.3µA input bias current.
PackageR
Quick Jump:
Technical Specifications
Analog Devices AD826AR-REEL7 technical specifications.
General
-3db Bandwidth
50MHz
Package/Case
R
Common Mode Rejection Ratio
100dB
Contact Plating
Tin, Lead
Gain Bandwidth Product
50MHz
Input Bias Current
3.3uA
Input Capacitance
1.5pF
Input Offset Voltage (Vos)
2mV
Input Voltage Noise Density
15nV/sqrt Hz
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
5V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
15mA
Output Current per Channel
50mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
86dB
Quiescent Current
7.5mA
RoHS Compliant
No
Settling Time
70ns
Slew Rate
350V/µs
Technology
BIPOLAR
Unity Gain Bandwidth Product
29MHz
Voltage Gain
72.04dB
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD826AR-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD826AR-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

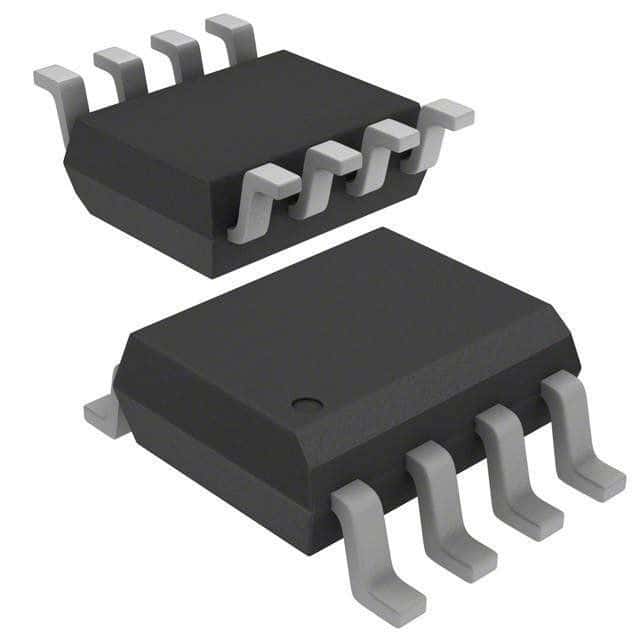

Product Images
