6-channel radar receive path analog front-end (AFE) featuring six general-purpose LNAs and PGAs, each with a 12MHz bandwidth and 18dB gain. Integrated 12-bit ADC with 80MS/s sampling rate, 68.5dB SNR, 10LSB INL, and 1LSB DNL. Operates at 3.3V with 190mA supply current, housed in an LFCSP EP package with tin matte contact plating. Suitable for telecom applications, with a -40°C to 105°C operating temperature range.
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices AD8283WBCPZ technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
12MHz
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Differential Nonlinearity
1LSB
Gain
18dB
Height
0.85mm
Integral Nonlinearity (INL)
10LSB
Interface
Parallel
Lead Free
Contains Lead
Length
10.1mm
Logic Function
Receiver
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Number of A/D Converters
1
Number of Amplifiers
6
Number of Channels
6
Operating Supply Current
190mA
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
80000KS/s
Signal to Noise Ratio (SNR)
68.5dB
Type
General Purpose
Width
9.85mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8283WBCPZ Datasheet
Download the complete datasheet for Analog Devices AD8283WBCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

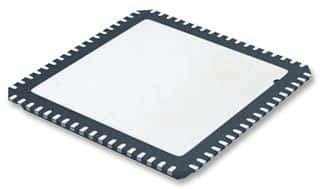

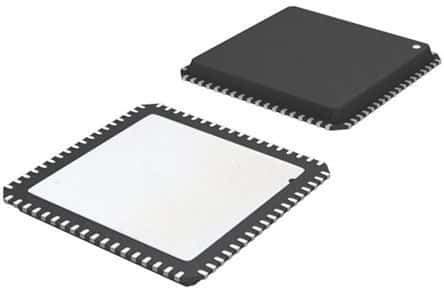

Product Images
