Surface mount quadrature modulator operating at 80MHz, featuring a 5.5V operating supply voltage and 65mA operating supply current. Delivers 2dBm output power with a P1dB of 2.5dBm, tested at 800MHz. Housed in a 16-pin TSSOP package with tin, matte contact plating. Packaged in tape and reel for high-volume applications.
PackageTSSOP
Current65mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD8345AREZ-RL7 technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin, Matte
Lead Free
Contains Lead
Max Power Dissipation
500mW
Max Supply Current
78A
Mount
Surface Mount
Operating Supply Current
65mA
Operating Supply Voltage
5.5V
Output Power (dBm)
2dBm
P1dB
2.5dBm
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
65mA
Test Frequency
800MHz
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8345AREZ-RL7 Datasheet
Download the complete datasheet for Analog Devices AD8345AREZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

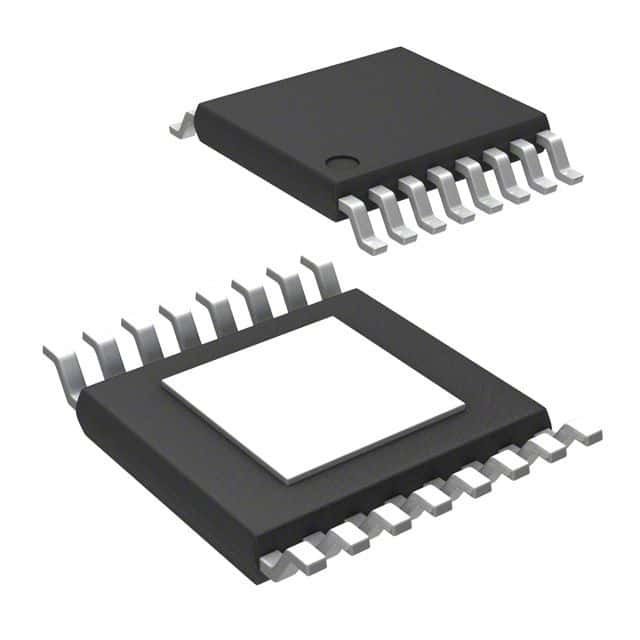

Product Images
