2-channel digital potentiometer featuring a 10kΩ resistance and 256 positions with linear taper. Operates with SPI interface, 2.7V to 5.5V supply voltage, and a maximum supply current of 900µA. Offers a 3dB bandwidth of 5MHz and a wide operating temperature range from -40°C to 125°C. Packaged in a through-hole PDIP with tin/lead contact plating.
PackagePDIP
Current10nA
Resistance10kR
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices AD8402AN10 technical specifications.
General
-3db Bandwidth
5MHz
Package/Case
PDIP
Contact Plating
Tin, Lead
Height
3.3mm
Interface
SPI
Lead Free
Contains Lead
Length
19.05mm
Max Operating Temperature
125°C
Max Supply Current
900uA
Max Supply Voltage
5.5V
Memory Type
Volatile
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Through Hole
Number of Circuits
2
Number of Elements
2
Number of Positions
256
Number of Taps
256
Operating Supply Current
10nA
Operating Supply Voltage
5.5V
Package Quantity
25
Packaging
Rail/Tube
Quiescent Current
10nA
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
Resistance Tolerance
20%
RoHS Compliant
No
Supply Current
10nA
Taper
Linear
Tolerance
20%
Width
6.35mm
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices AD8402AN10 Datasheet
Download the complete datasheet for Analog Devices AD8402AN10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

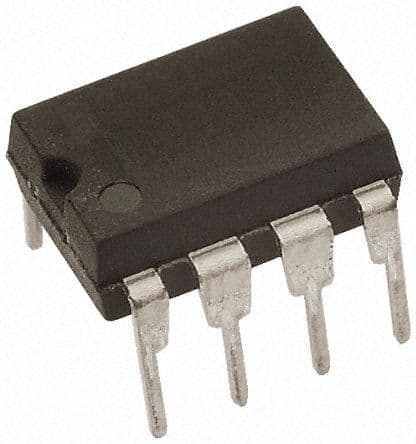

Product Images
