High-performance operational amplifier featuring a 40MHz gain bandwidth product and 300V/µs slew rate. This single-channel, general-purpose op-amp offers a low input offset voltage of 2mV and an input bias current of 8µA. Designed for surface mounting in an LCC package with gold contact plating, it operates from dual supply voltages ranging from 5V to 18V. Key specifications include a 86dB common mode rejection ratio and power supply rejection ratio, with a maximum operating temperature of 125°C.
PackageLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD841SE technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
LCC
Common Mode Rejection Ratio
86dB
Contact Plating
Gold
Dual Supply Voltage
15V
Gain Bandwidth Product
40MHz
Input Bias Current
8uA
Input Capacitance
2pF
Input Offset Voltage (Vos)
2mV
Input Voltage Noise Density
15nV/sqrt Hz
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.5W
Max Supply Voltage
18V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
11mA
Output Current per Channel
50mA
Package Quantity
54
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
86dB
RoHS Compliant
Yes
Slew Rate
300V/µs
Unity Gain Bandwidth Product
40MHz
Voltage Gain
93.06dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD841SE Datasheet
Download the complete datasheet for Analog Devices AD841SE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

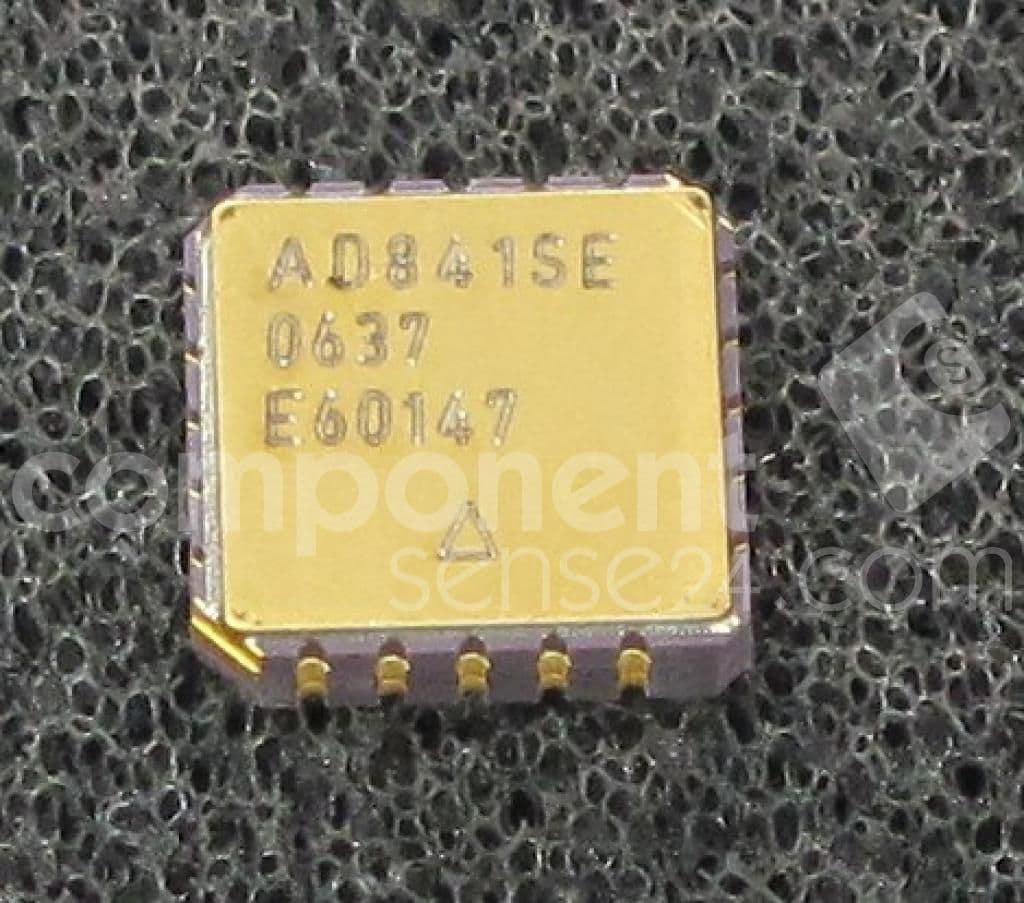

Product Images
