Dual operational amplifier featuring Rail-to-Rail Input and Output (RRIO) with zero input crossover distortion. This general-purpose amplifier offers a 95kHz gain bandwidth product and a 0.013V/µs slew rate. It operates from a 1.8V to 5V supply range with a typical quiescent current of 20µA. Key specifications include a 45nV/√Hz input voltage noise density, 1pA input bias current, and 120dB voltage gain. The component is housed in a BGA package and is RoHS compliant.
PackageBGA
Quick Jump:
Technical Specifications
Analog Devices AD8506ACBZ-REEL7 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
95kHz
Package/Case
BGA
Common Mode Rejection Ratio
90dB
Contact Plating
Copper, Tin, Silver
Gain Bandwidth Product
95kHz
Input Bias Current
1pA
Input Capacitance
4.2pF
Input Offset Voltage (Vos)
2.5mV
Input Voltage Noise Density
45nV/sqrt Hz
Lead Free
Contains Lead
Max Dual Supply Voltage
2.5V
Min Dual Supply Voltage
900mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5V
Min Supply Voltage
1.8V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
40uA
Operating Supply Voltage
3V
Output Current per Channel
45mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
110dB
Quiescent Current
20uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.013V/µs
Technology
CMOS
Unity Gain Bandwidth Product
95kHz
Voltage Gain
120dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8506ACBZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD8506ACBZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

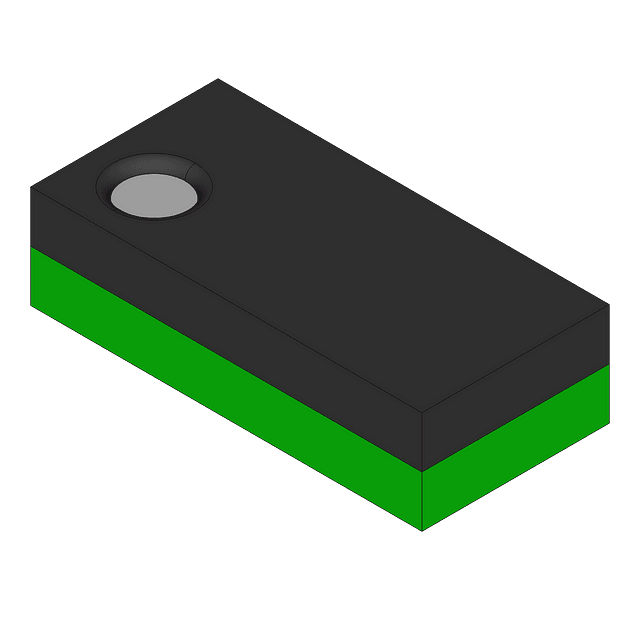

Product Images
