Dual, general-purpose operational amplifier featuring a 3MHz gain bandwidth product and 5V/µs slew rate. This CMOS technology device offers 250mA output current per channel, operating from a 2.7V to 6V supply. Key specifications include a 45nV/√Hz input voltage noise density and 5pA input bias current. Packaged in tape and reel, this RoHS compliant component operates within a -40°C to 85°C temperature range.
PackageR
Quick Jump:
Technical Specifications
Analog Devices AD8532ARZ-REEL7 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
R
Common Mode Rejection Ratio
47dB
Gain Bandwidth Product
3MHz
Input Bias Current
5pA
Input Offset Voltage (Vos)
25mV
Input Voltage Noise Density
45nV/sqrt Hz
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2.7V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
2.5mA
Output Current per Channel
250mA
Package Quantity
1000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
1.25mA
Radiation Hardening
No
RoHS Compliant
Yes
Settling Time
1.4us
Slew Rate
5V/µs
Technology
CMOS
Unity Gain Bandwidth Product
3MHz
Voltage Gain
98.06dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8532ARZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD8532ARZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

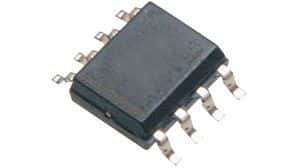

Product Images
