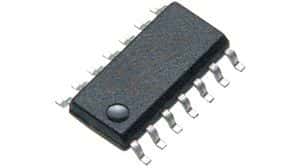

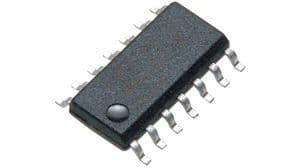

Quad single-supply operational amplifier featuring a 3MHz gain bandwidth product and 250mA output current per channel. This general-purpose op amp operates from 2.7V to 6V supply voltages, with a typical quiescent current of 1.25mA. It offers a 5V/µs slew rate and 1.4µs settling time, with input bias current of 5pA and input offset voltage of 25mV. The component is housed in a 4-amplifier configuration within a 8.75mm x 4mm x 1.5mm package.
PackageR
Quick Jump:
Technical Specifications
Analog Devices AD8534ARZ technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
3MHz
Package/Case
R
Common Mode Rejection Ratio
47dB
Contact Plating
Tin, Matte
Gain Bandwidth Product
3MHz
Height
1.5mm
Input Bias Current
5pA
Input Offset Voltage (Vos)
25mV
Input Voltage Noise Density
45nV/sqrt Hz
Lead Free
Contains Lead
Length
8.75mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2.7V
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
5mA
Operating Supply Voltage
5V
Output Current per Channel
250mA
Package Quantity
56
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
1.25mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
1.4us
Slew Rate
5V/µs
Technology
CMOS
Unity Gain Bandwidth Product
3MHz
Voltage Gain
98.06dB
Width
4mm
Compliance
RoHS
Compliant
