Dual rail-to-rail operational amplifier featuring 1MHz bandwidth and 1MHz gain bandwidth product. This general-purpose CMOS amplifier offers 2 channels, a maximum supply voltage of 5.5V, and a low operating supply current of 130µA. Key specifications include a 42nV/√Hz input voltage noise density, 4pA input bias current, and a 0.92V/µs slew rate. The device operates across a temperature range of -40°C to 125°C and is housed in a 5mm x 4mm x 1.5mm package with tin, matte contact plating.
PackageR
Voltage5V
Quick Jump:
Technical Specifications
Analog Devices AD8542ARZ technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
R
Common Mode Rejection Ratio
40dB
Contact Plating
Tin, Matte
Gain Bandwidth Product
1MHz
Height
1.5mm
Input Bias Current
4pA
Input Offset Voltage (Vos)
6mV
Input Voltage Noise Density
42nV/sqrt Hz
Lead Free
Contains Lead
Length
5mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
130uA
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
130uA
Operating Supply Voltage
5V
Output Current per Channel
30mA
Package Quantity
98
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
76dB
Quiescent Current
65uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
6us
Slew Rate
0.92V/µs
Technology
CMOS
Unity Gain Bandwidth Product
1MHz
Voltage
5V
Voltage Gain
92.04dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8542ARZ Datasheet
Download the complete datasheet for Analog Devices AD8542ARZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

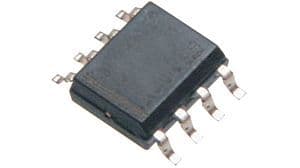

Product Images
