Analog Devices
AD8604ARU
IC QUAD OP-AMP, 2400 uV OFFSET-MAX, 8.2 MHz BAND WIDTH, PDSO14, MO-153AB-1, TSSOP-14, Operational Amplifier
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD8604ARU technical specifications.
General
Package/Case
TSSOP
Common Mode Rejection Ratio
74dB
Input Bias Current
60pA
Input Offset Voltage (Vos)
600uV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
67dB
RoHS Compliant
No
Slew Rate
6V/µs
Technology
CMOS
Unity Gain Bandwidth Product
8.4MHz
Voltage Gain
98.06dB
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD8604ARU Datasheet
Download the complete datasheet for Analog Devices AD8604ARU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

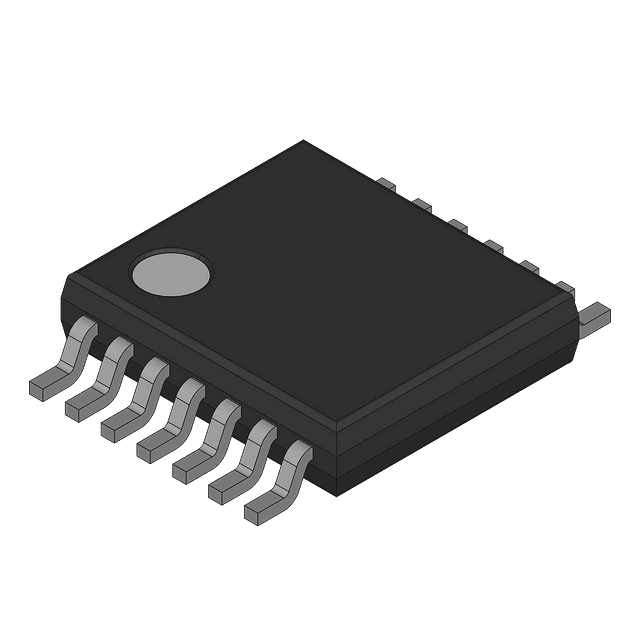

Product Images
