Precision dual rail-to-rail input/output operational amplifier featuring a 400kHz gain bandwidth product and 0.2pA input bias current. This CMOS amplifier offers a low 300µV input offset voltage and 25nV/√Hz input voltage noise density, operating from a 1.8V to 5V supply range with a maximum supply current of 100µA. The device boasts 85dB CMRR and 100dB PSRR, with a 0.1V/µs slew rate and 70mA output current per channel. Housed in a 5mm x 4mm x 1.5mm package, this RoHS compliant amplifier is suitable for operation between -40°C and 125°C.
PackageR
Current80uA
Quick Jump:
Technical Specifications
Analog Devices AD8607ARZ technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
400kHz
Package/Case
R
Common Mode Rejection Ratio
85dB
Contact Plating
Tin, Matte
Gain Bandwidth Product
400kHz
Height
1.5mm
Input Bias Current
0.2pA
Input Capacitance
2.5pF
Input Offset Voltage (Vos)
300uV
Input Voltage Noise Density
25nV/sqrt Hz
Lead Free
Contains Lead
Length
5mm
Max Dual Supply Voltage
2.5V
Min Dual Supply Voltage
900mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
100uA
Max Supply Voltage
5V
Min Supply Voltage
1.8V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
100uA
Operating Supply Voltage
3V
Output Current per Channel
70mA
Package Quantity
98
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
100dB
Quiescent Current
50uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
23us
Slew Rate
0.1V/µs
Supply Current
80uA
Technology
CMOS
Unity Gain Bandwidth Product
400kHz
Voltage Gain
113.06dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8607ARZ Datasheet
Download the complete datasheet for Analog Devices AD8607ARZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

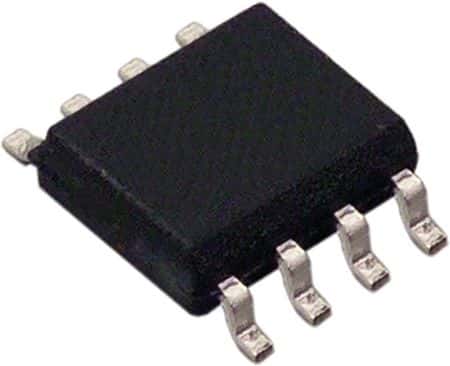

Product Images
