Dual operational amplifier featuring low micropower consumption and low input bias current of 0.2pA. This general-purpose amplifier offers a 350kHz bandwidth and a 400kHz gain bandwidth product. Operating from a minimum supply voltage of 1.8V up to a maximum of 5V, it provides a 95dB CMRR and 94dB PSRR. The device is constructed with CMOS technology, housed in a 5mm x 4mm x 1.5mm package, and operates across a temperature range of -40°C to 125°C.
PackageR
Current80uA
Quick Jump:
Technical Specifications
Analog Devices AD8617ARZ technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
350kHz
Package/Case
R
Common Mode Rejection Ratio
95dB
Contact Plating
Tin, Matte
Gain Bandwidth Product
400kHz
Height
1.5mm
Input Bias Current
0.2pA
Input Capacitance
2.5pF
Input Offset Voltage (Vos)
2.2mV
Input Voltage Noise Density
25nV/sqrt Hz
Lead Free
Contains Lead
Length
5mm
Max Dual Supply Voltage
2.5V
Min Dual Supply Voltage
900mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5V
Min Supply Voltage
1.8V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
76uA
Operating Supply Voltage
3V
Output Current per Channel
80mA
Package Quantity
98
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
94dB
Quiescent Current
38uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
23us
Slew Rate
0.1V/µs
Supply Current
80uA
Technology
CMOS
Unity Gain Bandwidth Product
400kHz
Voltage Gain
113.98dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8617ARZ Datasheet
Download the complete datasheet for Analog Devices AD8617ARZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

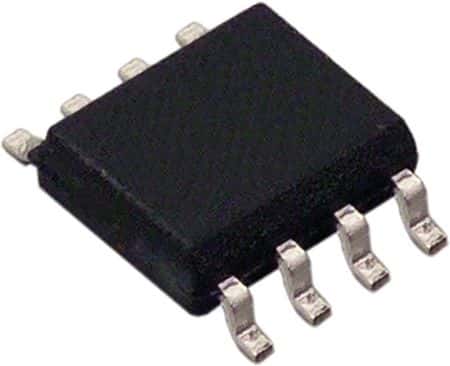

Product Images
