Precision JFET Quad Amplifier featuring rail-to-rail output and low power consumption. Offers a 2.5MHz bandwidth and 3.5MHz gain bandwidth product with a 3V/µs slew rate. Achieves 107dB CMRR and PSRR, with a low 1pA input bias current and 750µV input offset voltage. Operates from a 2.5V to 26V supply range, consuming 1.56mA operating supply current. Packaged in LFCSP EP, 1500 units per tape and reel.
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices AD8643ACPZ-REEL7 technical specifications.
General
Bandwidth
2.5MHz
Package/Case
LFCSP EP
Common Mode Rejection Ratio
107dB
Gain Bandwidth Product
3.5MHz
Input Bias Current
1pA
Input Offset Voltage (Vos)
750uV
Input Voltage Noise Density
28.5nV/sqrt Hz
Lead Free
Contains Lead
Max Dual Supply Voltage
13V
Min Dual Supply Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
26V
Min Supply Voltage
5V
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
1.56mA
Output Current per Channel
12mA
Package Quantity
1500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
107dB
Quiescent Current
290uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
3V/µs
Technology
JFET
Unity Gain Bandwidth Product
2.5MHz
Voltage Gain
102.92dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8643ACPZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD8643ACPZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

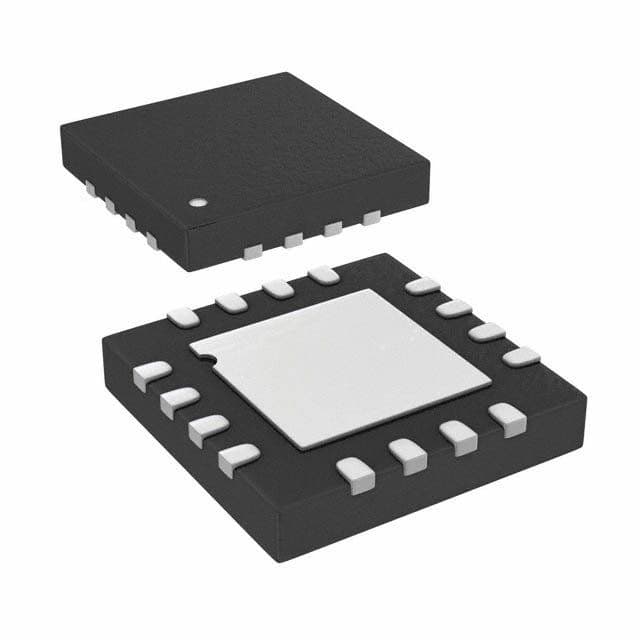

Product Images
