Single, CMOS rail-to-rail output operational amplifier featuring a 10MHz gain bandwidth product and 5V/µs slew rate. This general-purpose amplifier offers low input bias current of 1pA and input voltage noise density of 8nV/sqrt Hz. Operating from 2.7V to 6V supply voltages, it provides 95dB CMRR and PSRR. The TSOT package contains one amplifier with a maximum operating temperature of 125°C.
PackageTSOT
Quick Jump:
Technical Specifications
Analog Devices AD8691AUJZ-REEL7 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
TSOT
Common Mode Rejection Ratio
95dB
Contact Plating
Tin, Matte
Gain Bandwidth Product
10MHz
Input Bias Current
1pA
Input Offset Voltage (Vos)
2mV
Input Voltage Noise Density
8nV/sqrt Hz
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6V
Min Supply Voltage
2.7V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
1.05mA
Output Current per Channel
80mA
Package Quantity
3000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
95dB
Quiescent Current
1.05mA
RoHS Compliant
Yes
Settling Time
1us
Slew Rate
5V/µs
Technology
CMOS
Unity Gain Bandwidth Product
10MHz
Voltage Gain
126.02dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD8691AUJZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices AD8691AUJZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

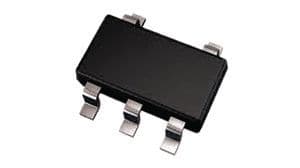

Product Images
