10-bit, 1-channel Analog-to-Digital Converter (ADC) with a 60 MSPS sampling rate. Features differential input type, unipolar polarity, and a parallel interface. Offers 1.5 LSB integral and differential nonlinearity, with a signal-to-noise ratio of 56.5 dB. Operates at a 5V supply voltage and has a maximum power dissipation of 315mW. Packaged in SSOP with tin/lead plating.
PackageSSOP
PolarityUnipolar
Power250mW
Quick Jump:
Technical Specifications
Analog Devices AD9051BRSRL technical specifications.
General
Package/Case
SSOP
Contact Plating
Tin, Lead
Differential Nonlinearity
1.5LSB
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
1.5LSB
Interface
Parallel
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
315mW
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
10
Number of Channels
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
1500
Packaging
Tape and Reel
Polarity
Unipolar
Power Dissipation
250mW
Resolution
10b
RoHS Compliant
No
Sampling Rate
60000000S/s
Signal to Noise Ratio (SNR)
56.5dB
Supply Type
Single
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD9051BRSRL Datasheet
Download the complete datasheet for Analog Devices AD9051BRSRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

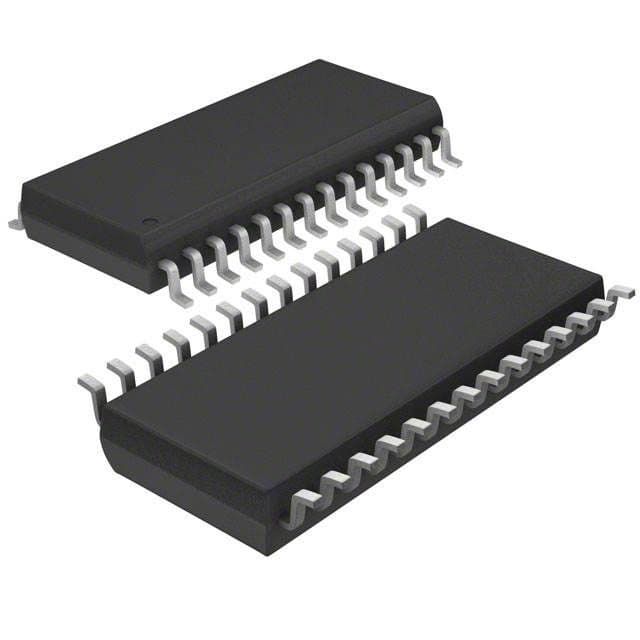

Product Images
