Dual 10-bit Analog-to-Digital Converter (ADC) offering 65 MSPS sampling rate. Features include 1.4 LSB Integral Nonlinearity (INL) and 1 LSB Differential Nonlinearity (DNL). Operates with a 2.7V to 3.3V supply voltage and 85mA nominal supply current. Input type is differential with a maximum input voltage of 1V. Packaged in tape and reel with tin, matte contact plating.
Quick Jump:
Technical Specifications
Analog Devices AD9216BCPZRL7-65 technical specifications.
General
Contact Plating
Tin, Matte
Differential Nonlinearity
1LSB
Input Capacitance
2pF
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
1.4LSB
Interface
Parallel
Lead Free
Contains Lead
Max Input Voltage
1V
Min Input Voltage
500mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
240mW
Max Supply Voltage
3.3V
Min Supply Voltage
2.7V
Nominal Supply Current
85mA
Number of A/D Converters
2
Number of Analog Inputs
2
Number of Bits
10
Number of Channels
2
Number of Converters
2
Number of Inputs
2
Operating Supply Current
85mA
Operating Supply Voltage
3V
Package Quantity
750
Packaging
Tape and Reel
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
65000000S/s
Signal to Noise Ratio (SNR)
58.6dB
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9216BCPZRL7-65 Datasheet
Download the complete datasheet for Analog Devices AD9216BCPZRL7-65 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

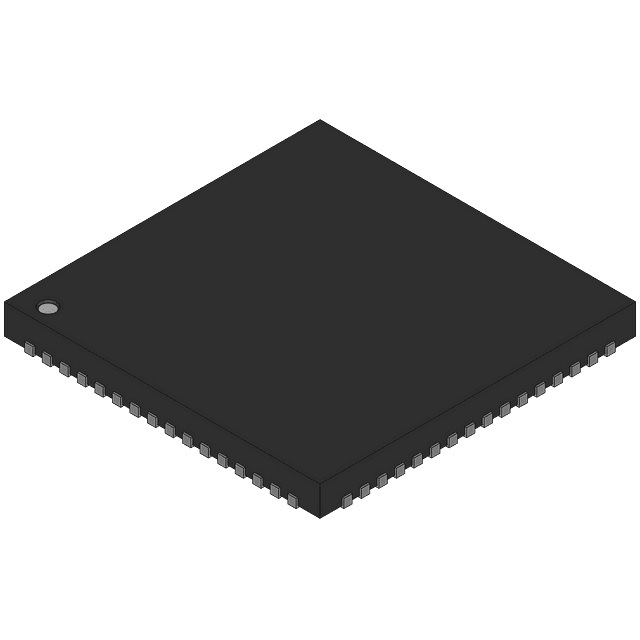

Product Images
