Dual-channel RF Agile Transceiver operating from 70MHz to 6GHz. Features 2 receivers and 2 transmitters with a noise figure of 2.5dB and output power up to 8dBm. This surface mount BGA package offers SPI, 3-wire, and 4-wire interfaces, with an operating supply voltage of 1.3V. Current draw is 445mA for receiving and 820mA for transmitting.
Frequency70MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices AD9361BBCZ technical specifications.
General
Package/Case
BGA
Contact Plating
Copper, Tin, Silver
Current - Receiving
445mA
Current - Transmitting
820mA
Frequency
70MHz
Height
1mm
Interface
SPI, 3-WIRE, 4-WIRE
Lead Free
Contains Lead
Length
10.1mm
Max Frequency
6GHz
Min Frequency
70MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.33V
Min Supply Voltage
1.267V
Mount
Surface Mount
Noise Figure
2.5dB
Number of Receivers
2
Number of Transmitters
2
Operating Supply Voltage
1.3V
Output Power (dBm)
8dBm
Package Quantity
184
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9361BBCZ Datasheet
Download the complete datasheet for Analog Devices AD9361BBCZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

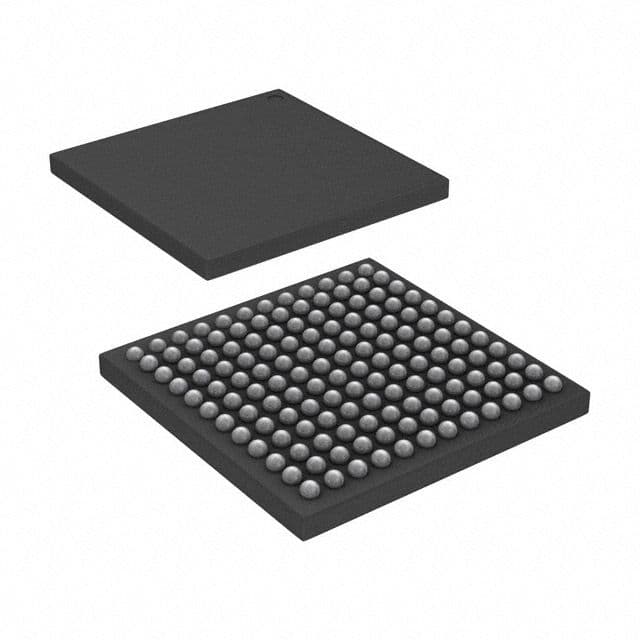

Product Images
