ANALOG DEVICES

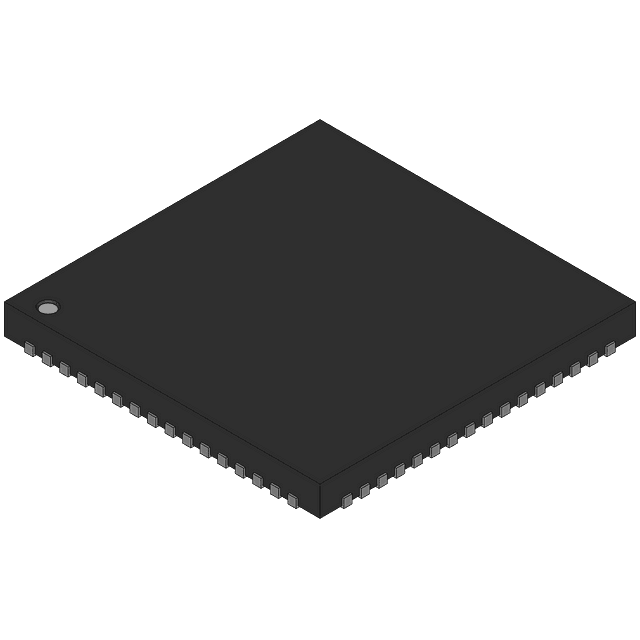

AD9510BCPZ

Datasheet

1.2GHz Clock Buffer IC, 8-Out, Diff In, PLL, 3.3V

Analog Devices

AD9510BCPZ

Name: AD9510BCPZ Analog Devices
Brand: Analog Devices
SKU: AD9510BCPZ

1.2GHz Clock Buffer IC, 8-Out, Diff In, PLL, 3.3V

1.2 GHz Clock Distribution IC featuring a PLL core, dividers, and delay adjustment. This integrated circuit offers eight differential clock outputs, operating from a 3.135V to 3.465V supply. With a maximum operating frequency of 1.2GHz, it supports serial interface and is housed in an LFCSP EP package with tin, matte contact plating. Designed for surface mount technology, this RoHS compliant component operates across a temperature range of -40°C to 85°C.

Frequency1.2GHz

PackageLFCSP EP

Power1.5W

Quick Jump:

Technical Specifications

Analog Devices AD9510BCPZ technical specifications.

General

Package/Case	LFCSP EP
Contact Plating	Tin, Matte
Frequency	1.2GHz
Height	0.83mm
Input	Clock
Input Type	DIFFERENTIAL
Interface	Serial
Lead Free	Contains Lead
Length	9mm
Logic Function	Clock
Max Frequency	1.2GHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	3.465V
Min Supply Voltage	3.135V
Number of Circuits	1
Number of Inputs	1
Number of Outputs	8
Operating Supply Voltage	3.3V
Packaging	Tray
Power Dissipation	1.5W
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Termination	SMD/SMT
Width	9mm
