1.2 GHz Clock Distribution IC featuring two 1.6 GHz inputs, dividers, and delay adjustment for precise timing control. This integrated circuit offers five outputs, supporting a maximum operating frequency of 1.2 GHz. It operates from a 3.135V to 3.465V supply voltage, with a typical 3.3V operating supply. The component is housed in an LFCSP EP package with Tin, Matte contact plating, designed for SMD/SMT termination. Operating temperature range is -40°C to 85°C.
Frequency1.2GHz
PackageLFCSP EP
Power850mW
Quick Jump:
Technical Specifications
Analog Devices AD9512BCPZ technical specifications.
General
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Frequency
1.2GHz
Height
0.83mm
Input
Clock
Interface
Serial
Lead Free
Contains Lead
Length
7mm
Logic Function
Clock
Max Frequency
1.2GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Number of Circuits
1
Number of Inputs
1
Number of Outputs
5
Operating Supply Voltage
3.3V
Packaging
Tray
Power Dissipation
850mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9512BCPZ Datasheet
Download the complete datasheet for Analog Devices AD9512BCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

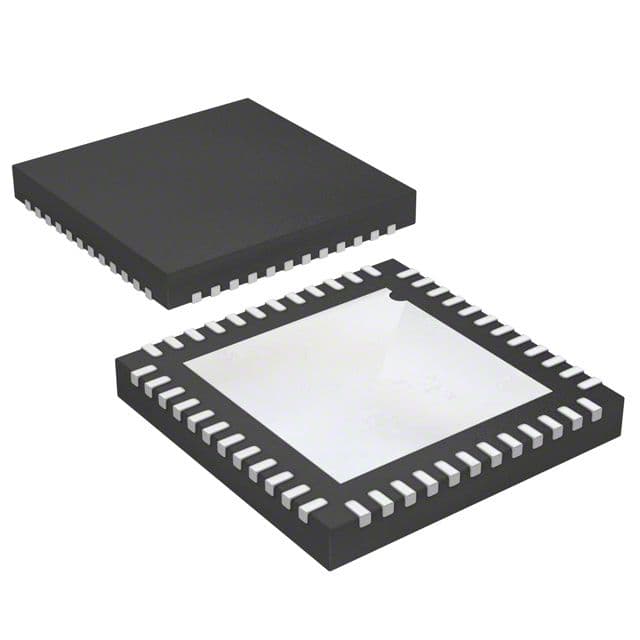

Product Images
