14-output clock generator featuring an integrated 2.0 GHz VCO, capable of generating frequencies up to 2.95 GHz. This integrated circuit offers two clock inputs and a serial interface for control. Operating within a supply voltage range of 3.135V to 3.465V, it functions across an extended temperature range of -40°C to 85°C. The component is housed in an LFCSP EP package with tin, matte contact plating and is RoHS compliant.
Frequency2GHz
PackageLFCSP EP
Current100uA
Quick Jump:
Technical Specifications
Analog Devices AD9516-3BCPZ technical specifications.
General
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Frequency
2GHz
Height
0.83mm
Input
Clock
Interface
Serial
Lead Free
Contains Lead
Length
9mm
Logic Function
Clock
Max Frequency
2.95GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Number of Circuits
1
Number of Inputs
2
Number of Outputs
14
Packaging
Tray
PLL
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
100uA
Width
9mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9516-3BCPZ Datasheet
Download the complete datasheet for Analog Devices AD9516-3BCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

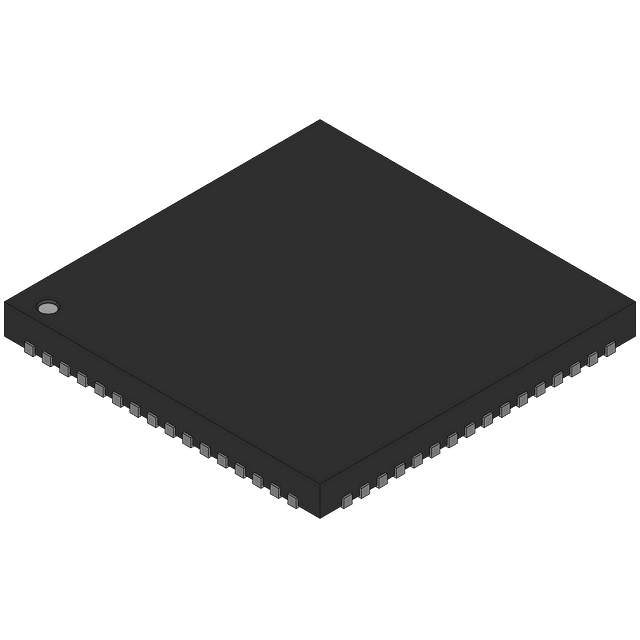

Product Images
