6-output clock generator featuring an integrated 1.6 GHz VCO, capable of generating frequencies up to 1.8 GHz. This integrated circuit supports both serial and parallel interfaces, accepting CMOS input. Operating within a 3.135V to 3.465V supply voltage range, it offers a maximum supply current of 100µA. The component is housed in a compact LFCSP EP package with dimensions of 7.1mm x 7.1mm x 0.95mm and is RoHS compliant.
Frequency1.8GHz
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices AD9518-4ABCPZ technical specifications.
General
Package/Case
LFCSP EP
Frequency
1.8GHz
Height
0.95mm
Input
CMOS
Interface
Serial, Parallel
Lead Free
Contains Lead
Length
7.1mm
Logic Function
Clock
Max Frequency
1.8GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
100uA
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Number of Circuits
1
Number of Inputs
2
Number of Outputs
6
Operating Supply Voltage
3.3V
Package Quantity
260
Packaging
Tray
PLL
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9518-4ABCPZ Datasheet
Download the complete datasheet for Analog Devices AD9518-4ABCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

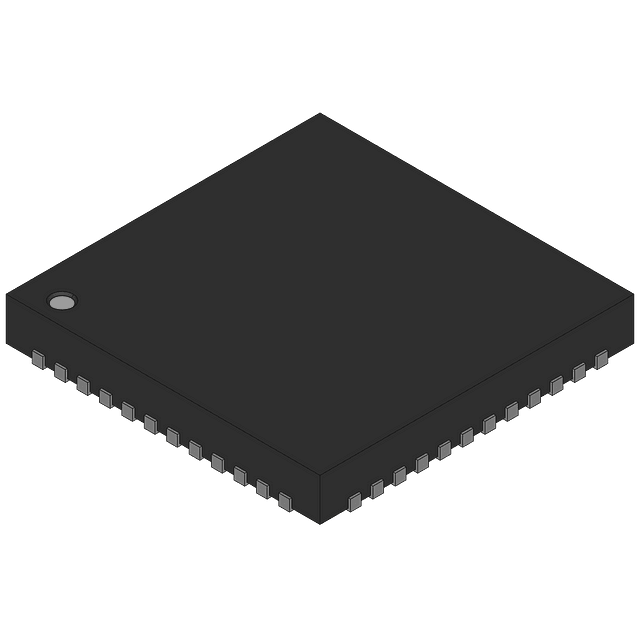

Product Images
