1.6 GHz Clock Generator and Synthesizer featuring 12 LVDS and 24 CMOS outputs. Integrated 1.6 GHz VCO supports up to 1.8 GHz maximum frequency. Single CMOS input and PLL functionality. LFCSP EP package with Tin, Matte contact plating. Operates from 3.135V to 3.465V supply voltage, with a temperature range of -40°C to 85°C.
Frequency1.6GHz
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices AD9522-4BCPZ technical specifications.
General
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Frequency
1.6GHz
Height
0.83mm
Input
CMOS
Lead Free
Contains Lead
Length
9mm
Logic Function
Clock
Max Frequency
1.8GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Number of Circuits
1
Number of Inputs
1
Number of Outputs
12
Packaging
Tray
PLL
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
9mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9522-4BCPZ Datasheet
Download the complete datasheet for Analog Devices AD9522-4BCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

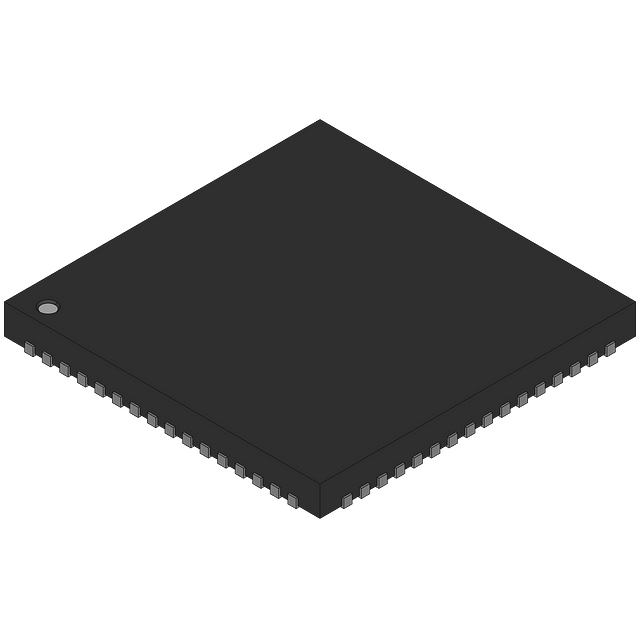

Product Images
