12-bit, 210 MSPS Analog-to-Digital Converter (ADC) featuring a single differential analog input. This IC offers a 1.8V operating supply voltage with a range of 1.7V to 1.9V, and a maximum power dissipation of 330mW. Key performance metrics include Integral Nonlinearity (INL) of 1.1 LSB and Differential Nonlinearity (DNL) of 0.6 LSB, with a Signal-to-Noise Ratio (SNR) of 64.4 dB. Interface options include LVDS and Parallel, with a maximum input voltage of 1.5V and an input capacitance of 2pF. Operating across a temperature range of -40°C to 85°C, this RoHS compliant component is supplied in a tray package with tin, matte contact plating.
Power310mW
Quick Jump:
Technical Specifications
Analog Devices AD9626BCPZ-210 technical specifications.
General
Contact Plating
Tin, Matte
Differential Nonlinearity
0.6LSB
Height
0.95mm
Input Capacitance
2pF
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
1.1LSB
Interface
LVDS, Parallel
Lead Free
Contains Lead
Length
8mm
Max Input Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
330mW
Max Supply Voltage
1.9V
Min Supply Voltage
1.7V
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
12
Number of Channels
1
Number of Inputs
1
Operating Supply Voltage
1.8V
Package Quantity
1
Packaging
Tray
Power Dissipation
310mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
210000000S/s
Signal to Noise Ratio (SNR)
64.4dB
Supply Type
Single
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9626BCPZ-210 Datasheet
Download the complete datasheet for Analog Devices AD9626BCPZ-210 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

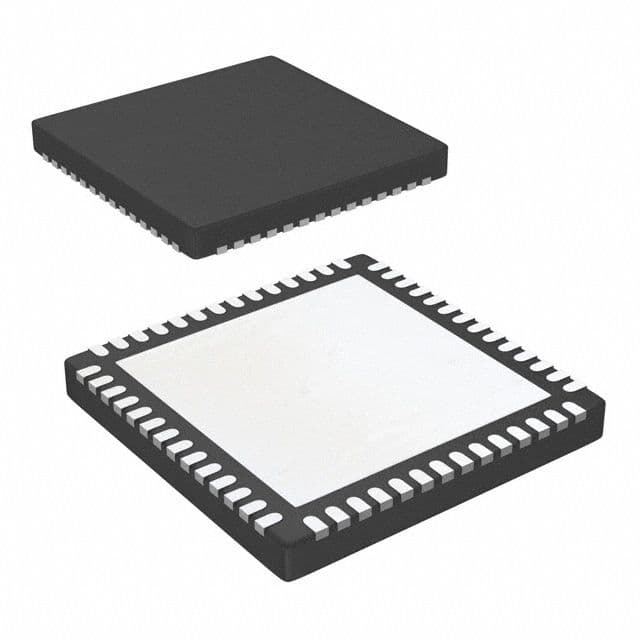

Product Images
