Dual 14-bit analog-to-digital converter (ADC) with a sampling rate of 210 MSPS. Features differential inputs, LVDS interface, and bipolar polarity. Offers 2LSB integral nonlinearity and 0.75LSB differential nonlinearity. Operates from a 1.8V supply voltage with a maximum power dissipation of 680mW. Packaged in LFCSP EP with tin, matte contact plating.
PackageLFCSP EP
PolarityBipolar
Power670mW
Quick Jump:
Technical Specifications
Analog Devices AD9643BCPZRL7-210 technical specifications.
General
Package/Case
LFCSP EP
Contact Plating
Tin, Matte
Differential Nonlinearity
0.75LSB
Input Capacitance
2.5pF
Input Type
DIFFERENTIAL
Integral Nonlinearity (INL)
2LSB
Interface
LVDS
Lead Free
Contains Lead
Max Input Voltage
2V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
680mW
Max Supply Voltage
1.9V
Min Supply Voltage
1.7V
Number of A/D Converters
2
Number of Analog Inputs
2
Number of Bits
14
Number of Channels
2
Number of Converters
2
Number of Elements
2
Number of Inputs
2
Operating Supply Voltage
1.8V
Package Quantity
750
Packaging
Tape and Reel
Polarity
Bipolar
Power Consumption
670mW
Power Dissipation
670mW
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
210000000S/s
Signal to Noise Ratio (SNR)
72.2dB
Supply Type
Analog, Digital, Single
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9643BCPZRL7-210 Datasheet
Download the complete datasheet for Analog Devices AD9643BCPZRL7-210 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

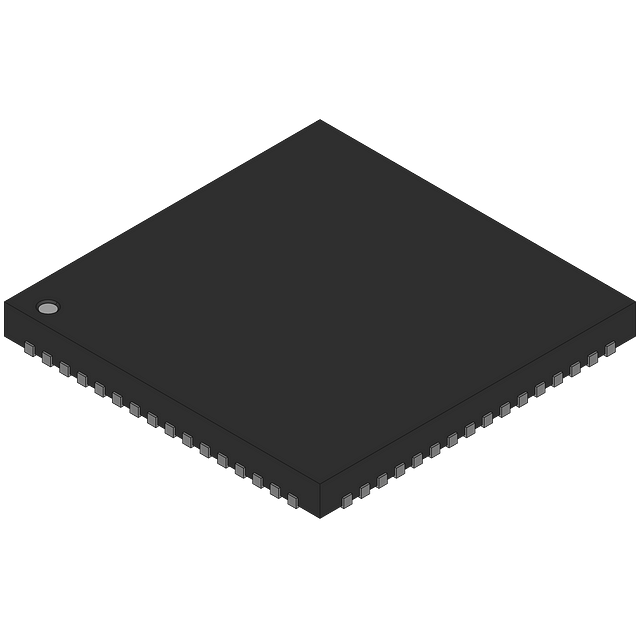

Product Images
