10-bit, 1.2GS/s digital-to-analog converter (DAC) with a single channel. Features a parallel and SPI interface, bipolar/unipolar output polarity, and a 3.3V operating supply voltage. Housed in a 1mm high BGA package with copper, tin, and silver contact plating. Offers 0.5LSB integral nonlinearity and operates across a -40°C to 85°C temperature range. Maximum power dissipation is 550mW.
PackageBGA
Power550mW
Quick Jump:
Technical Specifications
Analog Devices AD9734BBCZ technical specifications.
General
Package/Case
BGA
Contact Plating
Copper, Tin, Silver
Conversion Rate
1.2GS/s
Dual Supply Voltage
3.47V
Height
1mm
Integral Nonlinearity (INL)
0.5LSB
Interface
Parallel, SPI
Lead Free
Contains Lead
Length
12.1mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
550mW
Max Supply Voltage
3.47V
Min Supply Voltage
3.13V
Number of Bits
10
Number of Channels
1
Number of Converters
1
Number of DAC Channels
1
Operating Supply Voltage
3.3V
Output Polarity
Bipolar, Unipolar
Package Quantity
1
Packaging
Tray
Power Dissipation
550mW
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Sampling Rate
1.2GS/s
Series
AD9734
Supply Type
Analog, Digital
Width
12.1mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9734BBCZ Datasheet
Download the complete datasheet for Analog Devices AD9734BBCZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

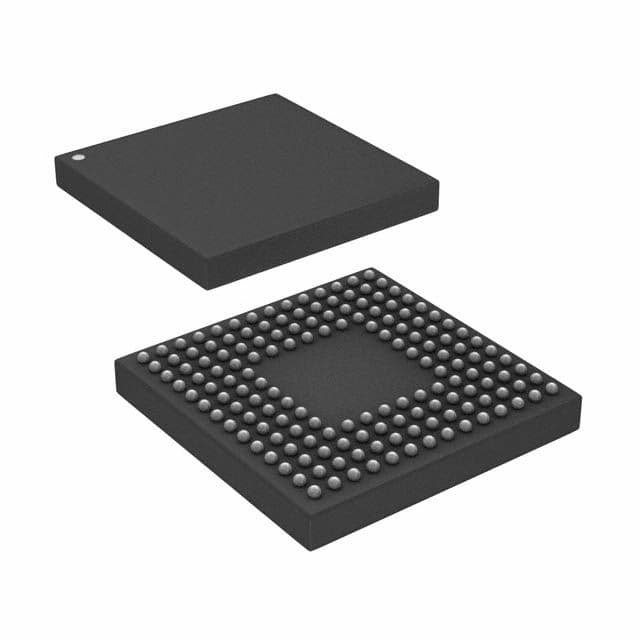

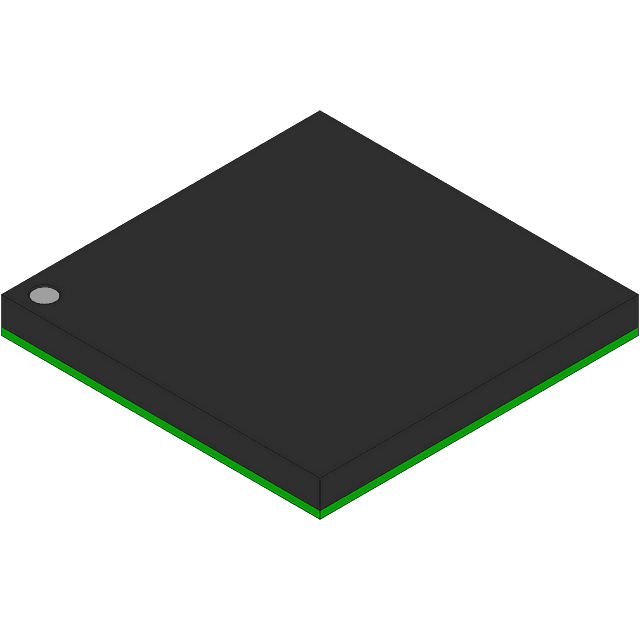

Product Images
