14-bit, 2.5 GSPS RF Digital-to-Analog Converter featuring a single channel with a 2.5 GS/s conversion rate. This integrated circuit offers a 14-bit resolution and a differential output. It supports LVDS, SPI, Serial, and Parallel interfaces, operating from a 3.1V to 3.5V supply voltage with a typical 3.3V. Maximum power dissipation is 960mW, and it operates within a temperature range of -40°C to 85°C.
PackageBGA
Power960mW
Quick Jump:
Technical Specifications
Analog Devices AD9739ABBCZRL technical specifications.
General
Package/Case
BGA
Conversion Rate
2.5GS/s
Differential Output
Yes
Integral Nonlinearity (INL)
2.5LSB
Interface
LVDS, SPI, Serial, Parallel
Lead Free
Contains Lead
Max Input Voltage
1.25V
Min Input Voltage
1.15V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
960mW
Max Supply Voltage
3.5V
Min Supply Voltage
3.1V
Number of Bits
14
Number of Channels
1
Number of Converters
1
Number of D/A Converters
1
Operating Supply Voltage
3.3V
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
960mW
Resolution
14b
RoHS Compliant
Yes
Sampling Rate
2.5GS/s
Settling Time
13us
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9739ABBCZRL Datasheet
Download the complete datasheet for Analog Devices AD9739ABBCZRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

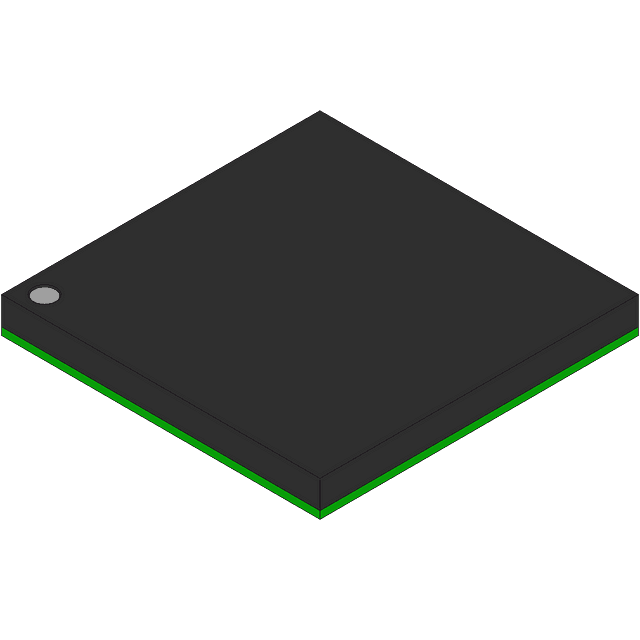

Product Images
