Dual 8-bit digital-to-analog converter (DAC) operating at a 250 MS/s conversion rate. Features differential output and parallel input with SPI and serial interface options. Offers 0.05 LSB integral nonlinearity and a wide operating temperature range of -40°C to 85°C. Maximum power dissipation is 345mW with a supply voltage range of 3.13V to 3.47V.
Current56mA
Power345mW
Quick Jump:
Technical Specifications
Analog Devices AD9741BCPZ technical specifications.
General
Conversion Rate
250MS/s
Differential Output
Yes
Input Type
PARALLEL
Integral Nonlinearity (INL)
0.05LSB
Interface
SPI, Parallel, Serial
Lead Free
Contains Lead
Max Input Voltage
1.3V
Min Input Voltage
1.15V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
345mW
Max Supply Voltage
3.47V
Min Supply Voltage
3.13V
Number of Bits
8
Number of Converters
2
Number of D/A Converters
2
Number of DAC Channels
2
Package Quantity
1
Packaging
Tray
Power Dissipation
345mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Sample Rate (Hz)
250MHz
Sampling Rate
250MS/s
Supply Current
56mA
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9741BCPZ Datasheet
Download the complete datasheet for Analog Devices AD9741BCPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

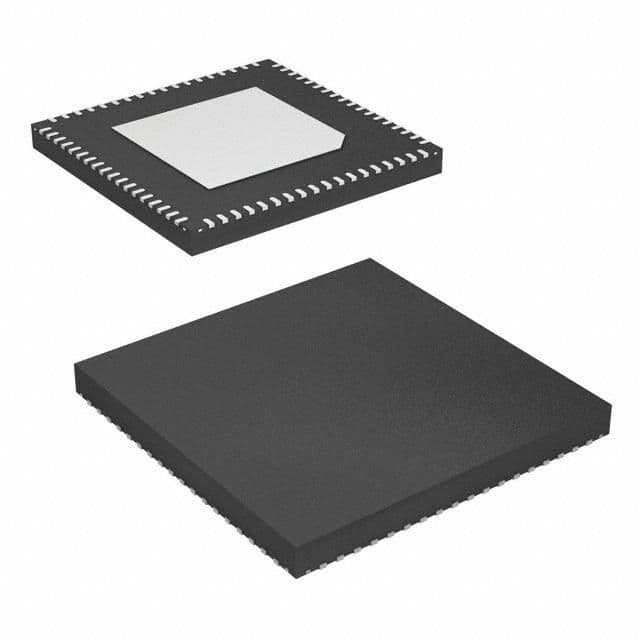

Product Images
