16-bit, 200 kSPS Analog-to-Digital Converter (ADC) featuring a serial SPI interface. Offers 3 LSB integral and differential nonlinearity, with a signal-to-noise ratio of 85dB. Operates from a 5V supply voltage, supporting bipolar and unipolar input polarity. Designed for through-hole mounting with a maximum power dissipation of 100mW.
PackageN
MountingThrough Hole
PolarityBipolar, Unipolar
Power100mW
Quick Jump:
Technical Specifications
Analog Devices AD977AANZ technical specifications.
General
Package/Case
N
Contact Plating
Tin, Matte
Differential Nonlinearity
3LSB
Height
4.95mm
Input Capacitance
40pF
Integral Nonlinearity (INL)
3LSB
Interface
SPI, Serial
Lead Free
Contains Lead
Length
26.9mm
Max Input Voltage
2.7V
Min Input Voltage
2.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
100mW
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
16
Number of Channels
1
Number of Inputs
1
Operating Supply Voltage
5V
Packaging
Rail/Tube
Polarity
Bipolar, Unipolar
Power Dissipation
100mW
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
200KS/s
Signal to Noise Ratio (SNR)
85dB
Supply Type
Analog, Digital
Width
7.11mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD977AANZ Datasheet
Download the complete datasheet for Analog Devices AD977AANZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

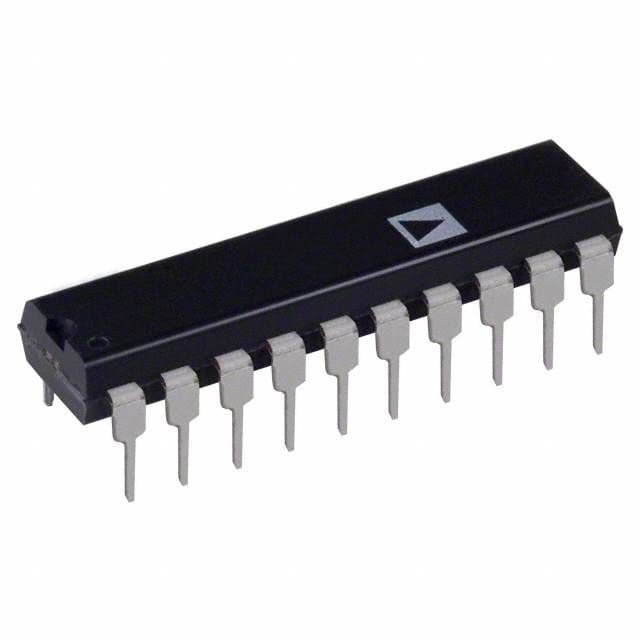

Product Images
