16-bit, 200 kSPS Analog-to-Digital Converter (ADC) with a single-ended input. Features a serial SPI interface, 2LSB integral nonlinearity, and -1LSB differential nonlinearity. Operates with a 5V supply voltage, offering bipolar and unipolar polarity. Housed in an N package with tin/lead contact plating, this through-hole component has a maximum power dissipation of 100mW and an operating temperature range of -40°C to 85°C.
PackageN
MountingThrough Hole
PolarityBipolar, Unipolar
Power100mW
Quick Jump:
Technical Specifications
Analog Devices AD977ABN technical specifications.
General
| Package/Case | N |
| Contact Plating | Tin, Lead |
| Differential Nonlinearity | -1LSB |
| Input Capacitance | 40pF |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 2LSB |
| Interface | Serial, SPI |
| Lead Free | Contains Lead |
| Max Input Voltage | 2.7V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Polarity | Bipolar, Unipolar |
| Power Dissipation | 100mW |
| Resolution | 16b |
| RoHS Compliant | No |
| Sampling Rate | 200KS/s |
| Signal to Noise Ratio (SNR) | 85dB |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices AD977ABN Datasheet
Download the complete datasheet for Analog Devices AD977ABN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

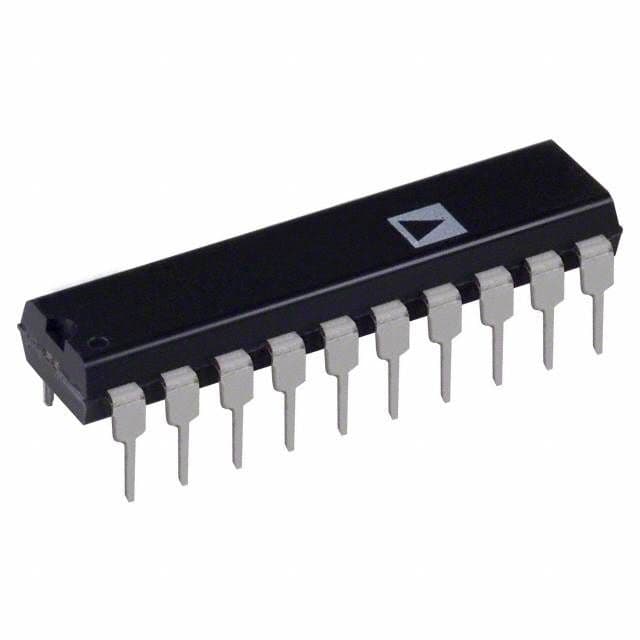

Product Images
