16-bit, 100 kSPS Analog-to-Digital Converter (ADC) with a single-ended input. Features a serial SPI interface, 85dB Signal-to-Noise Ratio (SNR), and Integral Nonlinearity (INL) of 2LSB. Operates from a 5V supply voltage with a maximum power dissipation of 100mW. Packaged in a through-hole mount configuration with tin, matte contact plating.
PackageN
MountingThrough Hole
PolarityBipolar, Unipolar
Power100mW
Quick Jump:
Technical Specifications
Analog Devices AD977BNZ technical specifications.
General
Package/Case
N
Contact Plating
Tin, Matte
Differential Nonlinearity
-1LSB
Height
4.95mm
Input Capacitance
40pF
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
2LSB
Interface
Serial, SPI
Lead Free
Contains Lead
Length
26.9mm
Max Input Voltage
2.7V
Min Input Voltage
2.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
100mW
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole
Number of A/D Converters
1
Number of Analog Inputs
1
Number of Bits
16
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Rail/Tube
Polarity
Bipolar, Unipolar
Power Dissipation
100mW
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
100KS/s
Signal to Noise Ratio (SNR)
85dB
Supply Type
Analog, Digital
Width
7.11mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD977BNZ Datasheet
Download the complete datasheet for Analog Devices AD977BNZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

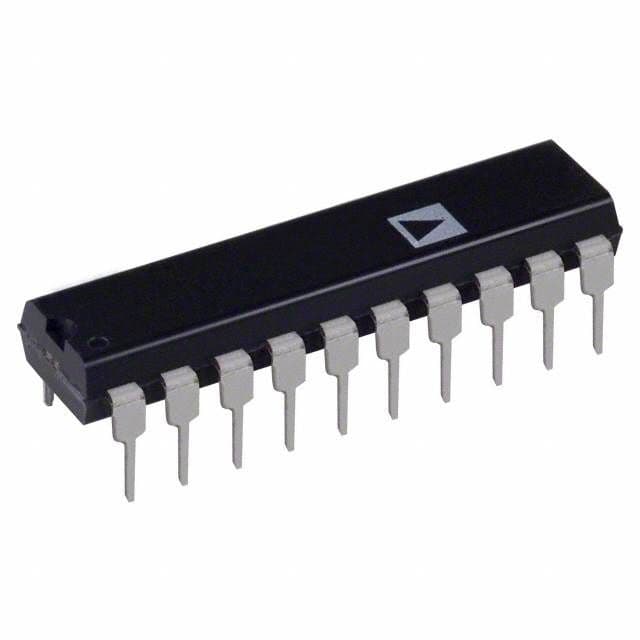

Product Images
