Dual 12-bit DAC with 800 MSPS conversion rate, featuring a 32-bit complex NCO for low-power operation. This specialized IC offers a parallel and SPI interface, differential output, and a unipolar output polarity. Operating from a 3.3V supply, it boasts 0.3 LSB integral nonlinearity and a settling time of 20 µs. Encased in a QFP package with tin, matte contact plating, it operates within a -40°C to 85°C temperature range.
PackageQFP
Power450mW
Quick Jump:
Technical Specifications
Analog Devices AD9785BSVZ technical specifications.
General
Package/Case
QFP
Contact Plating
Tin, Matte
Conversion Rate
800MS/s
Differential Output
Yes
Height
0.9mm
Integral Nonlinearity (INL)
0.3LSB
Interface
Parallel, SPI
Lead Free
Contains Lead
Length
16mm
Max Input Voltage
1.2V
Min Input Voltage
1.2V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
450mW
Max Supply Voltage
3.47V
Min Supply Voltage
3.13V
Nominal Supply Current
0pA
Number of Bits
12
Number of Channels
2
Number of Converters
2
Number of D/A Converters
2
Number of DAC Channels
2
Operating Supply Voltage
3.3V
Output Polarity
Unipolar
Package Quantity
90
Packaging
Tray
Power Dissipation
450mW
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
800MS/s
Series
TxDAC+®
Settling Time
20us
Width
16mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9785BSVZ Datasheet
Download the complete datasheet for Analog Devices AD9785BSVZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

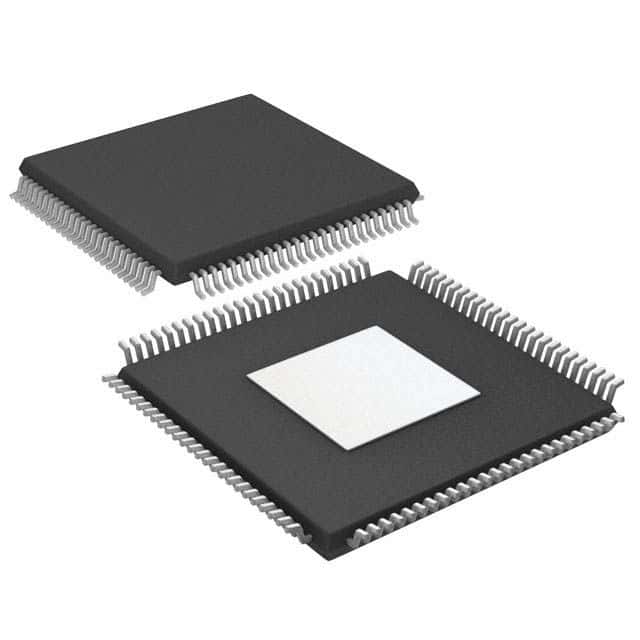

Product Images
