Direct Digital Synthesizer (DDS) operating at 400MHz, featuring a 14-bit resolution and a single 14-bit Digital-to-Analog Converter (DAC). This clock generator and synthesizer offers a conversion rate of 400,000 kS/s and a data rate of 25 Mbps. Housed in a 48-pin TQFP package with tin, matte contact plating, it supports surface mount termination. The device operates within a supply voltage range of 1.7V to 1.9V and has a power dissipation of 171mW, with an operating temperature range of -40°C to 105°C.
Frequency400MHz
PackageTQFP
MountingSurface Mount
Power171mW
Quick Jump:
Technical Specifications
Analog Devices AD9951YSVZ technical specifications.
General
Package/Case
TQFP
Contact Plating
Tin, Matte
Conversion Rate
400000KS/s
Data Rate
25Mbps
Frequency
400MHz
Height
1mm
Lead Free
Contains Lead
Length
7mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.9V
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of Bits
14
Number of Converters
1
Number of D/A Converters
1
Number of Outputs
1
Package Quantity
250
Packaging
Tray
Power Dissipation
171mW
Reach SVHC Compliant
No
Resolution
14b
RoHS Compliant
Yes
Termination
SMD/SMT
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD9951YSVZ Datasheet
Download the complete datasheet for Analog Devices AD9951YSVZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

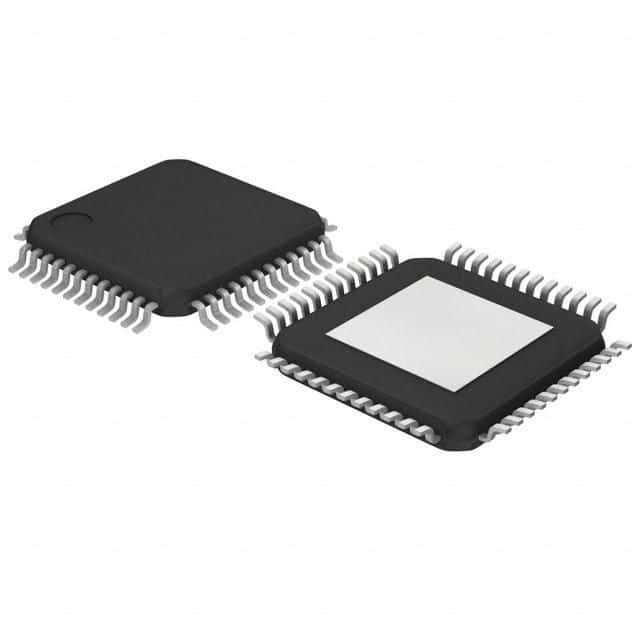

Product Images
