Quad operational amplifier featuring a 1.22MHz gain bandwidth product and 0.46V/µs slew rate. This general-purpose, micropower op amp offers 117dB voltage gain, 95dB CMRR, and 126dB PSRR. It operates from a 3V to 30V single supply or ±1.5V to ±15V dual supply, with a low 200µA quiescent current. The component boasts a 35µV input offset voltage and 50nA input bias current, packaged in an LFCSP EP with tin-matte plating.
PackageLFCSP EP
Quick Jump:
Technical Specifications
Analog Devices ADA4091-4ACPZ-R2 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.22MHz
Package/Case
LFCSP EP
Common Mode Rejection Ratio
95dB
Contact Plating
Tin, Matte
Gain Bandwidth Product
1.22MHz
Input Bias Current
50nA
Input Offset Voltage (Vos)
35uV
Lead Free
Contains Lead
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
30V
Min Supply Voltage
3V
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
200uA
Output Current per Channel
20mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
126dB
Quiescent Current
200uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.46V/µs
Technology
BIPOLAR
Unity Gain Bandwidth Product
1.22MHz
Voltage Gain
117dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADA4091-4ACPZ-R2 Datasheet
Download the complete datasheet for Analog Devices ADA4091-4ACPZ-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

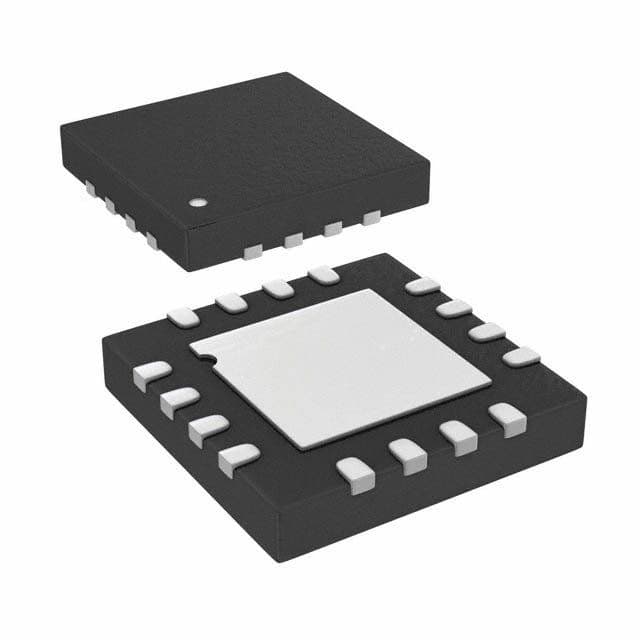

Product Images
