PackageMSOP
Current11.8mA
Quick Jump:
Technical Specifications
Analog Devices ADA4311-1ARHZ-R7 technical specifications.
General
-3db Bandwidth
310MHz
Bandwidth
310MHz
Package/Case
MSOP
Common Mode Rejection Ratio
57dB
Contact Plating
Tin, Matte
Gain Bandwidth Product
310MHz
Input Bias Current
4.5uA
Input Offset Voltage (Vos)
1mV
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
12V
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
11.8mA
Package Quantity
1000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
-70dB
RoHS Compliant
Yes
Slew Rate
1050V/µs
Supply Current
11.8mA
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADA4311-1ARHZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADA4311-1ARHZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

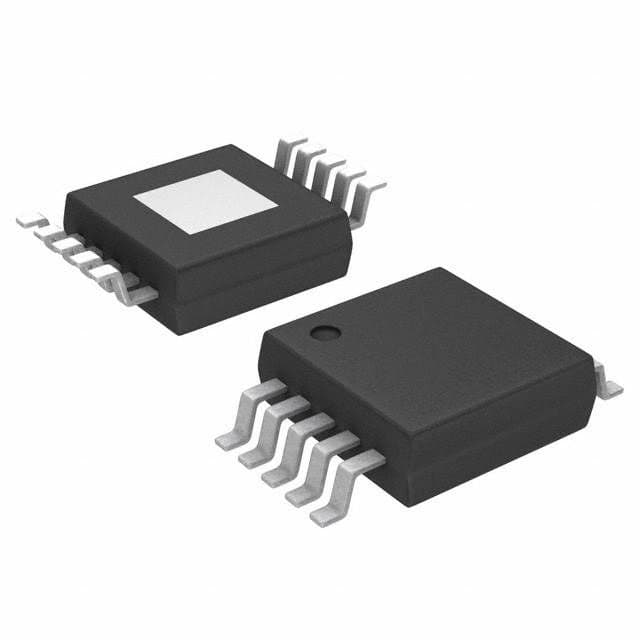

Product Images
