High-performance JFET operational amplifier featuring a 19MHz bandwidth and 40V/µs slew rate. Offers low input bias current of 1pA and low input voltage noise density of 16.5nV/√Hz. Supports dual supply voltages from ±5V to ±15V and single supply from 10V to 30V. Achieves 120dB voltage gain and 116dB CMRR, with an output current of 45mA per channel. Packaged in a compact 5mm x 4mm x 1.5mm R-type case.
PackageR
Quick Jump:
Technical Specifications
Analog Devices ADA4627-1BRZ technical specifications.
General
Bandwidth
19MHz
Package/Case
R
Common Mode Rejection Ratio
116dB
Gain Bandwidth Product
19MHz
Height
1.5mm
Input Bias Current
1pA
Input Capacitance
7pF
Input Offset Voltage (Vos)
200uV
Input Voltage Noise Density
16.5nV/sqrt Hz
Lead Free
Contains Lead
Length
5mm
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
30V
Min Supply Voltage
10V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
7mA
Output Current per Channel
45mA
Output Type
PUSH-PULL
Package Quantity
98
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
106dB
Quiescent Current
7mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
450ns
Slew Rate
40V/µs
Technology
JFET
Unity Gain Bandwidth Product
19MHz
Voltage Gain
120dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADA4627-1BRZ Datasheet
Download the complete datasheet for Analog Devices ADA4627-1BRZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

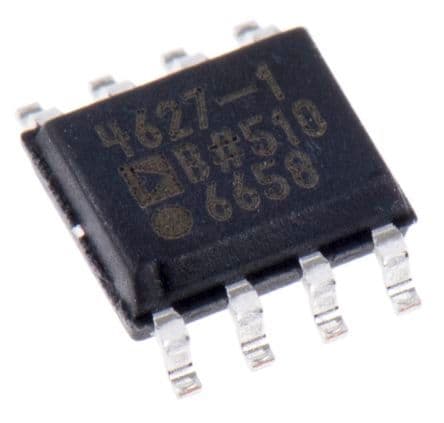

Product Images
