Analog Devices
ADA4830-1WBCPZ-R7
High Speed Difference Amplifier with Input Short to Battery Protection
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADA4830-1WBCPZ-R7 technical specifications.
General
-3db Bandwidth
84MHz
Amplifier Type
DIFFERENTIAL
Common Mode Rejection Ratio
65dB
Contact Plating
Tin, Matte
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.9V
Mount
Surface Mount
Nominal Supply Current
6.8mA
Number of Circuits
1
Operating Supply Current
6.8mA
Output Current per Channel
125mA
Packaging
Tape and Reel
RoHS Compliant
Yes
Slew Rate
220V/µs
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADA4830-1WBCPZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADA4830-1WBCPZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

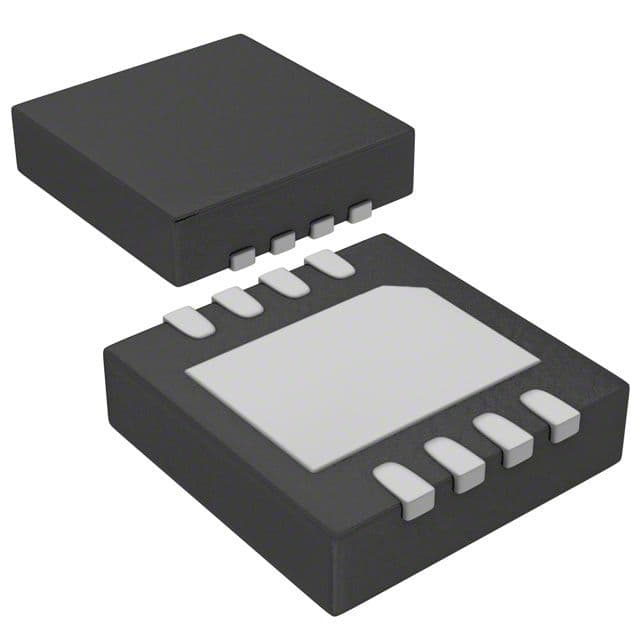

Product Images
