Dual high-speed operational amplifier featuring 850MHz -3dB bandwidth and 2800V/µs slew rate. This IC offers ultralow distortion, low power consumption with a nominal supply current of 11mA, and low noise characteristics. Designed for versatility, it operates across a wide supply voltage range from 4.5V to 10.5V and boasts a 400MHz gain bandwidth product. The VQFN package ensures efficient integration, with a 2-amplifier configuration and 50mA output current per channel.
PackageVQFN
Quick Jump:
Technical Specifications
Analog Devices ADA4857-2YCPZ-R2 technical specifications.
General
-3db Bandwidth
850MHz
Package/Case
VQFN
Common Mode Rejection Ratio
76dB
Contact Plating
Tin, Matte
Gain Bandwidth Product
400MHz
Input Bias Current
2uA
Input Capacitance
2pF
Input Offset Voltage (Vos)
2mV
Lead Free
Contains Lead
Max Dual Supply Voltage
5.25V
Min Dual Supply Voltage
2.25V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
10.5V
Min Supply Voltage
4.5V
Nominal Supply Current
11mA
Number of Amplifiers
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
5mA
Output Current per Channel
50mA
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
58dB
Quiescent Current
5.5mA
RoHS Compliant
Yes
Slew Rate
2800V/µs
Voltage Gain
57dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADA4857-2YCPZ-R2 Datasheet
Download the complete datasheet for Analog Devices ADA4857-2YCPZ-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

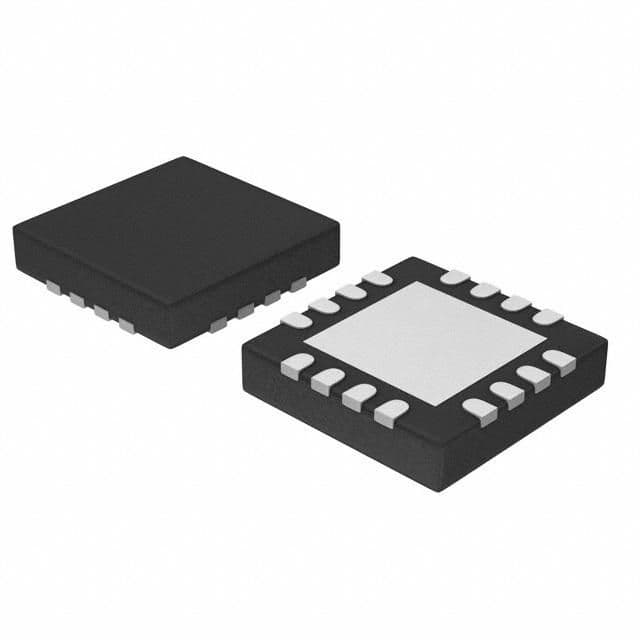

Product Images
