Differential ADC driver featuring 1.4GHz bandwidth and 1.4GHz gain bandwidth product. This single-channel, single-amplifier integrated circuit offers a high slew rate of 6800V/µs and 100mA output current per channel. With a common mode rejection ratio of 77dB and power supply rejection ratio of 80dB, it operates from a 3V to 5.25V supply. The surface mount LFCSP EP package is RoHS compliant.
PackageLFCSP EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADA4939-1YCPZ-R7 technical specifications.
General
-3db Bandwidth
1.4GHz
Amplifier Type
DIFFERENTIAL
Bandwidth
1.4GHz
Package/Case
LFCSP EP
Common Mode Rejection Ratio
77dB
Gain Bandwidth Product
1.4GHz
Input Bias Current
2.2uA
Input Offset Voltage (Vos)
500uV
Input Resistance
450kR
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
37.7mA
Operating Supply Voltage
5V
Output Current per Channel
100mA
Package Quantity
1500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
80dB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
6800V/µs
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADA4939-1YCPZ-R7 Datasheet
Download the complete datasheet for Analog Devices ADA4939-1YCPZ-R7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

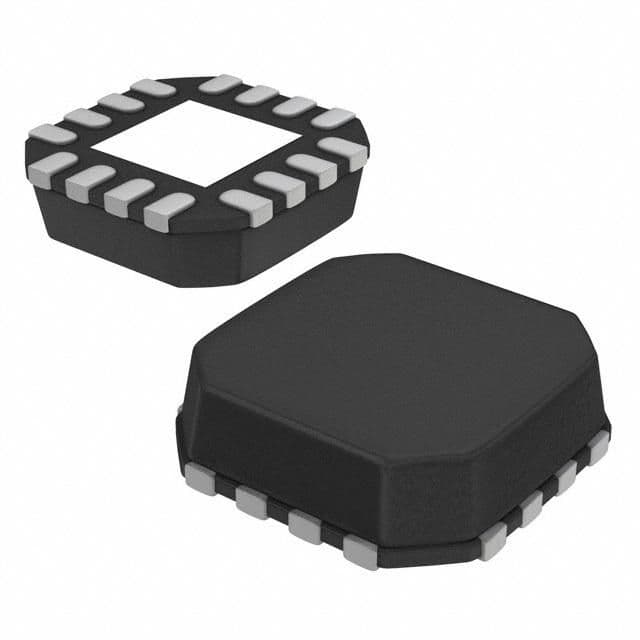

Product Images
