Differential ADC driver with 1.4GHz -3dB bandwidth and 6800V/µs slew rate. Features 2 channels, 77dB CMRR, and 80dB PSRR. Operates from 3V to 5.25V with a nominal supply current of 37.7mA. Surface mount LFCSP EP package with tin, matte contact plating.
PackageLFCSP EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADA4939-2YCPZ-R2 technical specifications.
General
-3db Bandwidth
1.4GHz
Amplifier Type
DIFFERENTIAL
Package/Case
LFCSP EP
Common Mode Rejection Ratio
77dB
Contact Plating
Tin, Matte
Input Bias Current
10uA
Input Offset Voltage (Vos)
500uV
Input Resistance
450kR
Lead Free
Contains Lead
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
3V
Mount
Surface Mount
Nominal Supply Current
37.7mA
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
36.5mA
Operating Supply Voltage
5V
Output Current per Channel
100mA
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
80dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
6800V/µs
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADA4939-2YCPZ-R2 Datasheet
Download the complete datasheet for Analog Devices ADA4939-2YCPZ-R2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

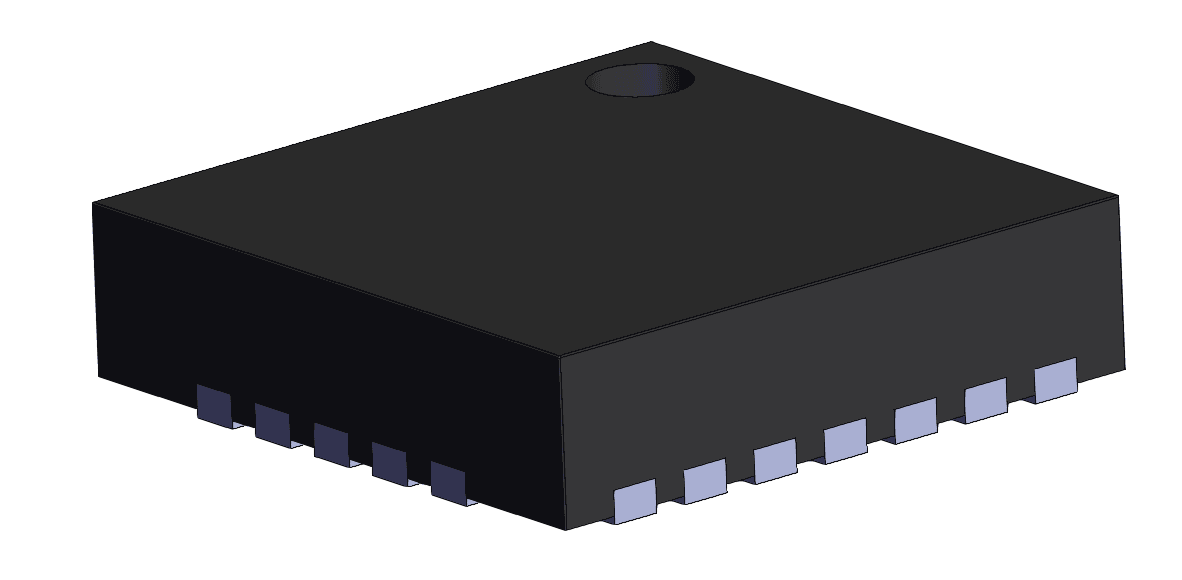

Product Images
