SigmaDSP® digital audio processor featuring a flexible audio routing matrix. This integrated circuit operates at a maximum frequency of 172MHz with a 56-bit data bus width. It offers 4 ADC channels, 12 GPIO pins, and supports I2C and SPI interfaces. The component is housed in an LQFP package for surface mounting, with an operating supply voltage of 3.3V and a memory size of 40KB. Operating temperature ranges from -40°C to 105°C.
Frequency172MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADAU1445YSVZ-3A technical specifications.
General
Package/Case
LQFP
Data Bus Width
56b
Frequency
172MHz
Height
1.05mm
Interface
I2C, SPI
Lead Free
Contains Lead
Length
14mm
Max Frequency
172MHz
Max Operating Temperature
105°C
Memory Size
40KB
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
4
Number of GPIO
12
Number of I2C Channels
1
Number of SPI Channels
1
Operating Supply Voltage
3.3V
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SigmaDSP®
Weight
0.04653oz
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADAU1445YSVZ-3A Datasheet
Download the complete datasheet for Analog Devices ADAU1445YSVZ-3A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

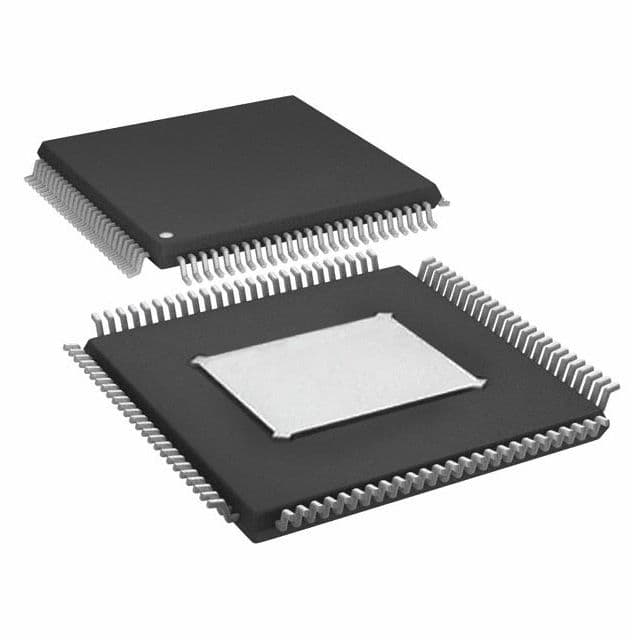

Product Images
