ANALOG DEVICES

ADCLK946BCPZ

Datasheet

4.8GHz SiGe Clock Buffer, 6 LVPECL Outputs, CMOS In

Analog Devices

ADCLK946BCPZ

Name: ADCLK946BCPZ Analog Devices
Brand: Analog Devices
SKU: ADCLK946BCPZ

4.8GHz SiGe Clock Buffer, 6 LVPECL Outputs, CMOS In

SiGe Clock Fanout Buffer with six LVPECL outputs, capable of operating at frequencies up to 4.8GHz. This integrated circuit features a CMOS input and supports both serial and parallel interfaces. Designed for high-speed clock distribution, it offers a propagation delay of 0.22ns and a turn-on delay time of 0.22ns. The component operates within a supply voltage range of 2.97V to 3.63V, with a maximum supply current of 275mA. Packaged in an LFCSP EP with tin, matte contact plating, it operates across a temperature range of -40°C to 85°C.

Frequency4.8GHz

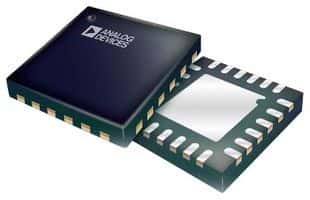

PackageLFCSP EP

Current245mA

Quick Jump:

Technical Specifications

Analog Devices ADCLK946BCPZ technical specifications.

General

Package/Case	LFCSP EP
Contact Plating	Tin, Matte
Frequency	4.8GHz
Height	1mm
Input	CMOS
Interface	Serial, Parallel
Lead Free	Contains Lead
Length	4mm
Max Frequency	4.8GHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Current	275mA
Max Supply Voltage	3.63V
Min Supply Voltage	2.97V
Number of Circuits	1
Number of Inputs	1
Number of Outputs	6
Package Quantity	490
Packaging	Tray
Propagation Delay	0.22ns
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	SiGe
Supply Current	245mA
Turn-On Delay Time	0.22ns
Width	4mm
