High-speed PECL comparators featuring two channels in a QSOP package. Offers a 0.625ns propagation delay and 500ps response time. Operates from a 3.135V to 5.25V supply with a typical 3.3V operating voltage. Key specifications include 76dB CMRR, 75dB PSRR, 60dB voltage gain, and 500µV hysteresis. Maximum power dissipation is 60mW with a maximum supply current of 17mA.
PackageQSOP
Current17mA
Power60mW
Quick Jump:
Technical Specifications
Analog Devices ADCMP552BRQ technical specifications.
General
Package/Case
QSOP
Common Mode Rejection Ratio
76dB
Contact Plating
Tin, Lead
Hysteresis
500uV
Input Bias Current
5uA
Input Offset Voltage (Vos)
10mV
Lead Free
Contains Lead
Max Input Current
28uA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
60mW
Max Supply Current
17mA
Max Supply Voltage
5.25V
Min Supply Voltage
3.135V
Number of Channels
2
Number of Elements
2
Operating Supply Current
16mA
Operating Supply Voltage
3.3V
Output Current
55mA
Package Quantity
56
Packaging
Rail/Tube
Power Dissipation
60mW
Power Supply Rejection Ratio (PSRR)
75dB
Propagation Delay
0.625ns
Quiescent Current
17mA
Radiation Hardening
No
Response Time
500ps
RoHS Compliant
No
Supply Current
17mA
Voltage Gain
60dB
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices ADCMP552BRQ Datasheet
Download the complete datasheet for Analog Devices ADCMP552BRQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

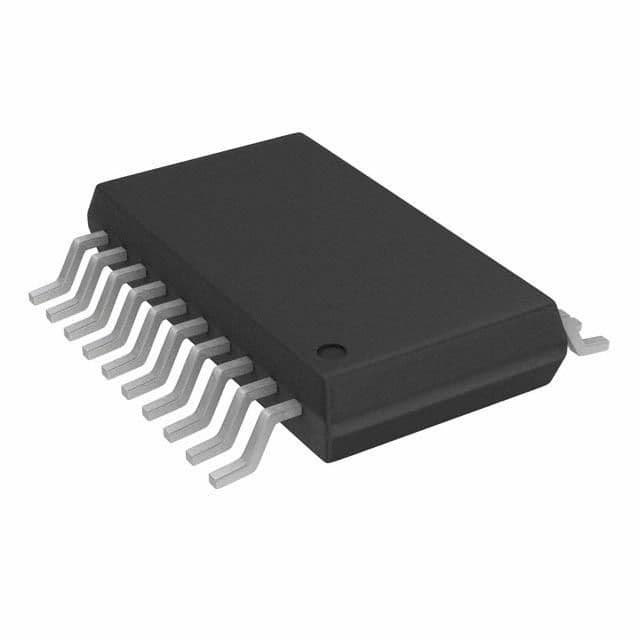

Product Images
