Dual high-speed ECL comparator featuring 2 channels and 2 elements. Offers a 0.83ns propagation delay and 500ps response time. Specifications include 80dB Common Mode Rejection Ratio and 85dB Power Supply Rejection Ratio. Operates with a supply voltage range of -5.2V to 5V, drawing 23mA quiescent current. Housed in a 20-lead QSOP package with Tin/Lead contact plating.
PackageQSOP
Current23mA
Power120mW
Quick Jump:
Technical Specifications
Analog Devices ADCMP564BRQ technical specifications.
General
Package/Case
QSOP
Common Mode Rejection Ratio
80dB
Contact Plating
Tin, Lead
Hysteresis
1mV
Input Bias Current
3uA
Input Offset Voltage (Vos)
3mV
Lead Free
Contains Lead
Max Input Current
3uA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
120mW
Max Supply Voltage
5V
Min Supply Voltage
-5.2V
Number of Channels
2
Number of Elements
2
Operating Supply Current
23mA
Output Current
30mA
Package Quantity
56
Packaging
Rail/Tube
Power Dissipation
120mW
Power Supply Rejection Ratio (PSRR)
85dB
Propagation Delay
0.83ns
Quiescent Current
25mA
Response Time
500ps
RoHS Compliant
No
Supply Current
23mA
Voltage Gain
63dB
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices ADCMP564BRQ Datasheet
Download the complete datasheet for Analog Devices ADCMP564BRQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

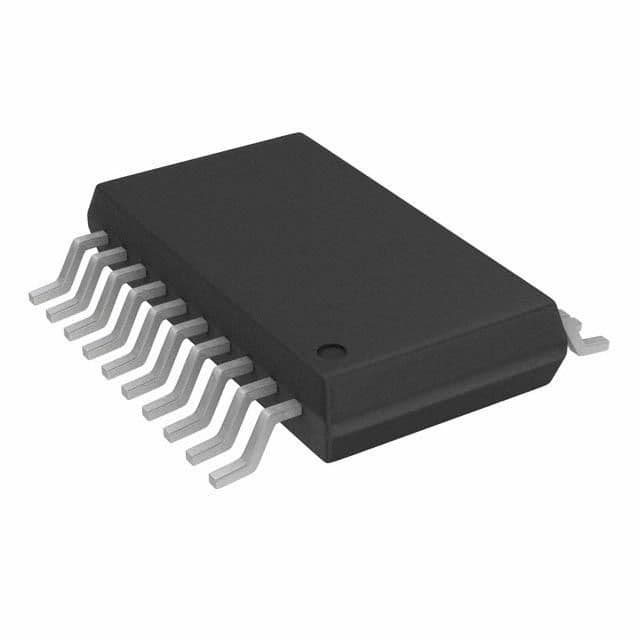

Product Images
