Phase-Locked Loop (PLL) Frequency Synthesizer IC, featuring a single circuit with one output. Operates with a maximum frequency of 400MHz and a supply voltage range of 2.7V to 3.3V, with a nominal 3V operating voltage. Surface mountable in a TSSOP package, this component offers a typical supply current of 5mA. Designed for CMOS input, it operates within a temperature range of -40°C to 85°C and is supplied on tape and reel.
Frequency400MHz
PackageTSSOP
Current6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADF4002BCPZ-RL7 technical specifications.
General
Package/Case
TSSOP
Input
CMOS
Lead Free
Contains Lead
Max Frequency
400MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.3V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Supply Current
5mA
Number of Circuits
1
Number of Elements
1
Number of Outputs
1
Operating Supply Current
5mA
Operating Supply Voltage
3V
Packaging
Tape and Reel
PLL
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
6mA
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADF4002BCPZ-RL7 Datasheet
Download the complete datasheet for Analog Devices ADF4002BCPZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

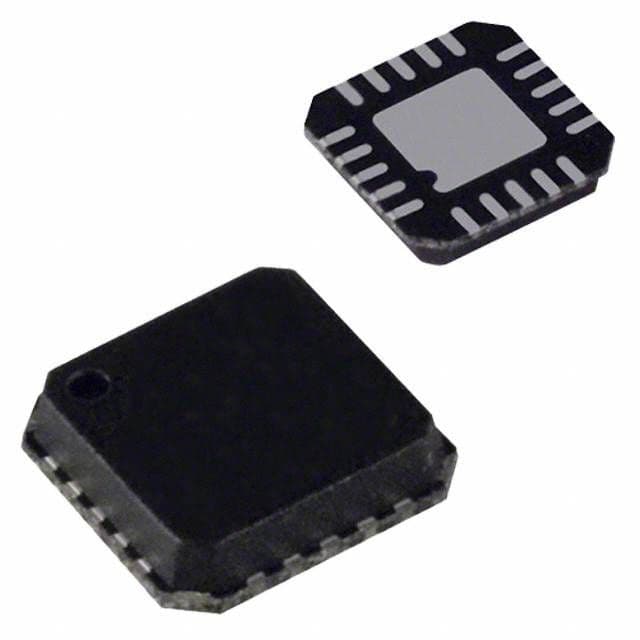

Product Images
