Analog Devices
ADF4360-2BCPZRL7
Integrated Integer-N Synthesizer and VCO - Output Frequency 1850 to 2170
Frequency2.17GHz
PackageLFCSP EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADF4360-2BCPZRL7 technical specifications.
General
| Package/Case | LFCSP EP |
| Input | CMOS |
| Lead Free | Contains Lead |
| Max Frequency | 2.17GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 48mA |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Outputs | 3 |
| Operating Supply Current | 50mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| PLL | Yes |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Analog Devices ADF4360-2BCPZRL7 Datasheet
Download the complete datasheet for Analog Devices ADF4360-2BCPZRL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

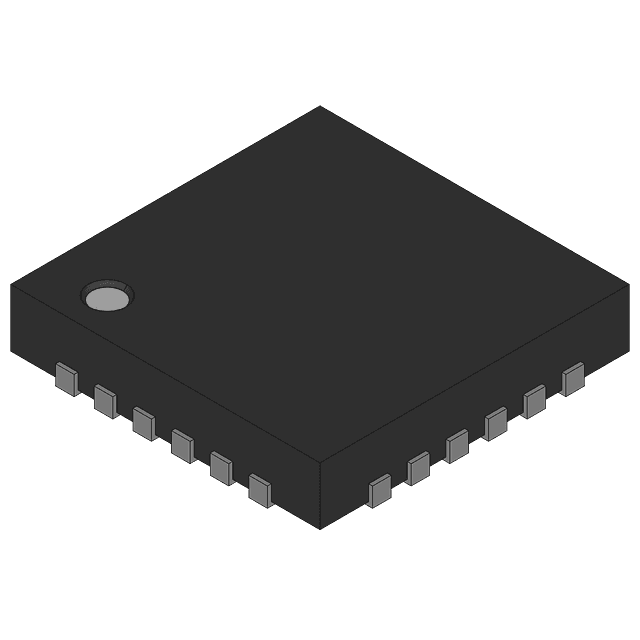

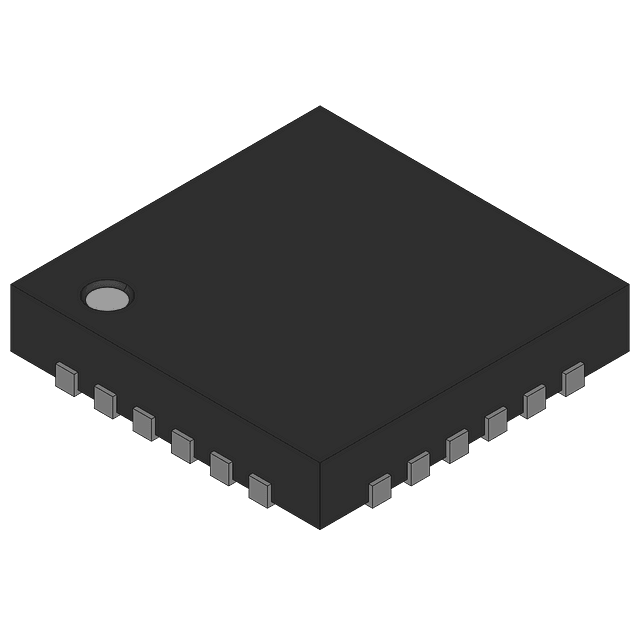

Product Images
