High-performance narrowband ISM transceiver IC featuring a 950MHz frequency band. Offers a sensitivity of -130dBm and an output power of 13dBm. Supports data rates up to 32.8Kbps with SPI and UART interfaces. Operates from a 2.3V to 3.6V supply voltage, drawing 26.4mA receive and 32.3mA transmit current. Packaged in LFCSP EP for surface mounting, with a temperature range of -40°C to 85°C.
Frequency950MHz
PackageLFCSP EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Analog Devices ADF7021BCPZ-RL7 technical specifications.
General
Package/Case
LFCSP EP
Current - Receiving
26.4mA
Current - Transmitting
32.3mA
Data Rate
32.8Kbps
Depth
7mm
Frequency
950MHz
Interface
SPI, UART
Lead Free
Contains Lead
Length
7mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Operating Supply Current
23.3mA
Operating Supply Voltage
3.6V
Output Power (dBm)
13dBm
Package Quantity
750
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Sensitivity
-130dBm
Compliance
RoHS
Compliant
Datasheet
Analog Devices ADF7021BCPZ-RL7 Datasheet
Download the complete datasheet for Analog Devices ADF7021BCPZ-RL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

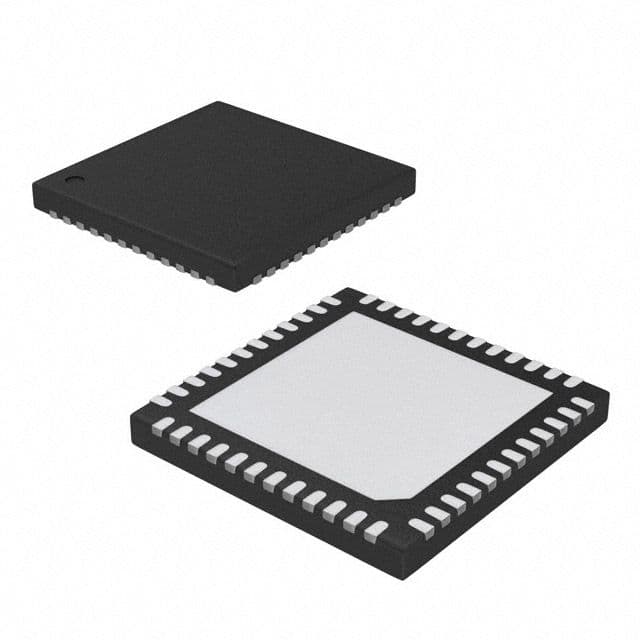

Product Images
